The CTS Battery Operated Multi-Compartment Fuel Tank Alarm system has three functions; to detect and warn of a fuel storage tank overfill, a high/low liquid level and a bund leak. If the tank level alarm identifies that any of these states have occurred, the channel in question will illuminate on the alarm’s screen, and a loud siren and flashing red light will go off. When its battery is low, this level bund alarm will sound a single beep every minute to alert the user of this.

Thanks to being battery powered, these fuel tank alarms are designed to be installed on isolated or portable systems, and each channel can be configured allowing the alarm to be customised by the installer. Options are available that come with three relays, allowing additional equipment to be connected to the tank level alarm such as larger alarm systems or building management systems for remote monitoring.

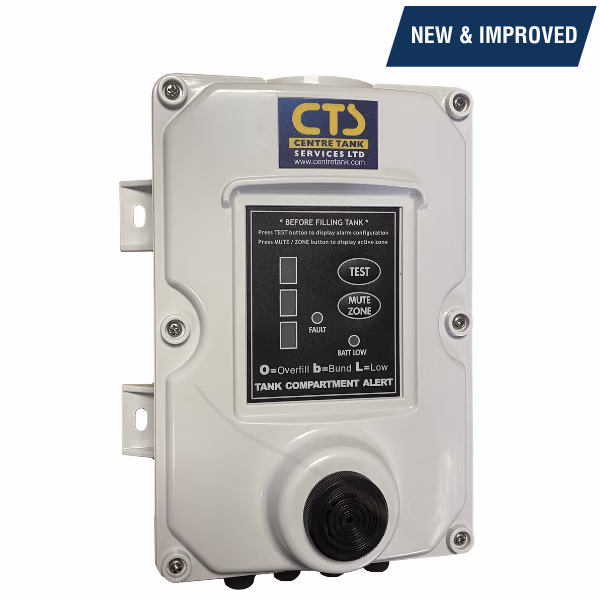

The CTS Battery Fuel Tank Level Alarm box has undergone a redesign for the convenience of the tank manufacturer/installer. It benefits from the same functionality the market knows and loves, but now with external mounting lugs for installation without opening up the tank alarm box, captive screws to prevent accidentally dropping and losing them in the bund and improved cable gland positioning.

If you need a tank level alarm for a fluid other than diesel or light oil, also available are a water and chemical alarm probe, and a high viscosity oil tank level probe – which is also suitable for AdBlue as well as high viscosity oils. Please see the accessories table.

Please note: Codes SWS4000 and SWS4001 do not come complete with probes. Please view the accessories table to select the combination you need. All cables must be free of electrical noise.

• For any combination of high, low, bund
• Weatherproof IP55 enclosure with external mounting lugs
• LED channel lights up to indicate the issue
• 85db sounder
• Beeping alert of low battery
• Test and alarm mute functions
• Automatically reversed float logic for 'low channels'
• 6 x 9v AA Batteries
• Option available with 3 relays
• Options with probe/s available - see table
• SWS4000 and SWS4001 not supplied with probes - select from accessories table
• 45m max probe length
• Rain drip guard above panel and around sounder

• Gland plugs supplied to prevent water ingress in unused cable glands





  Product Models





  Code	Model	Description
  SWS4000	CTS Battery Multi-Compartment Fuel Tank Alarm Box Only	Box only - select probes from accessories table 6 x AA Batteries Red warning LED 85 db sounder
  SWS4001	CTS Battery Multi-Compartment Fuel Tank Alarm Box Only c/w 3 relays	Box only - select probes from accessories table 6 x AA Batteries Red warning LED 85 db sounder 3 x Relays (C,NO,NC @ 230v 8A)
  SWS4011	CTS Battery Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays	Alarm Box c/w Single Probe 6 x AA Batteries Red warning LED 85 db sounder 3 x Relays (C,NO,NC @ 230v 8A)
  SWS4012	CTS Battery Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays	Alarm Box c/w Single & Double Probes 6 x AA Batteries Red warning LED 85 db sounder 3 x Relays (C,NO,NC @ 230v 8A)


  Accessories


  Code	Accessory
  SWS1035	Single Fuel Tank Alarm Probe - For High Level, Low Level or Bund Alerts - High, low or bund c/w 5m cable and 1.5" brass cap Stainless Steel weight For diesel, fuels, light oils and water
  SWS1035/2	Double Fuel Tank Alarm Probe - For high and low level Alerts - High and Low 2 x 5m cable and 1.5" brass cap Stainless Steel weight For diesel, fuels, light oils and water
  SWS1038	High Viscosity Fluid Tank Level Alarm Probe Alerts - High or Low c/w 5m cable and 1.5" brass cap For viscous fluids and waste oils
  SWS1038AB	AdBlue Tank Level Alarm Probe Alerts - High or Low c/w 5m cable and 1.5" plastic cap For AdBlue
  SWS1040	Water & Chemical Tank Level Alarm Probe Alerts - High or Low c/w 5m cable and 1.5" polypropylene cap For water and select chemicals (please check compatibility)
  SWS1036	Plastic Tank Kit - For Single Tank Alarm Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
  SWS1037	Plastic Tank Kit - For Double Probe Kit for use on a plastic rather than steel tank Steel, flat, round plate 2 x Grommet
  SWS1111	Extra Alarm Cable Per Metre
