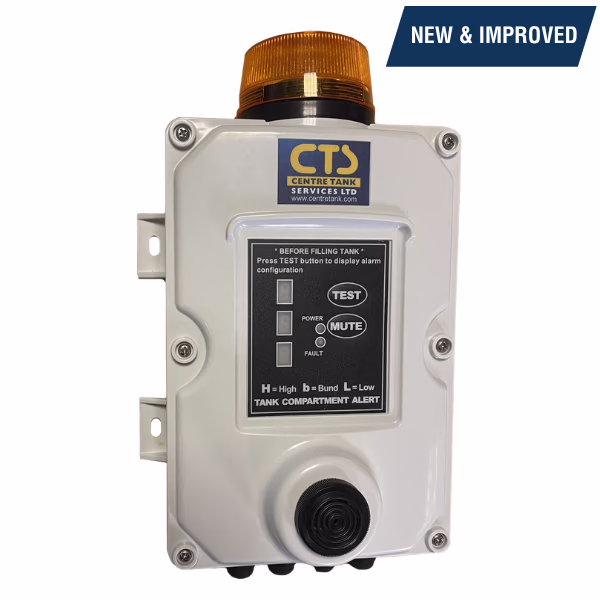

CTS Mains Multi-Compartment Fuel Tank Alarm

About the product

The CTS Mains Operated Multi-Compartment Fuel Tank Alarm system has three functions; to detect and warn of a tank overfill, a high/low liquid level and a bund leak. If this fuel tank alarm identifies any of these issues, the channel in question will light up on the alarm’s screen, combined with an alarm sounder and flashing orange strobe, which provides the user with a clear warning of the activated tank state. Each channel can be configured in any of the three functions High, Low or Bund, enabling the complete customisation of these fuel tank alarms based upon the user's requirements with a very simple set of electrical jumpers.

Options are available complete with three relays, to allow external equipment to be connected to each channel of the tank level alarm such as building management system for remote monitoring. This level and bund alarm also has the additional feature of controlling the pump from the relays (if fitted). When the fuel storage tank contents are 'low', the pump switches on and stays on until 'high' is reached. This is commonly used for ensuring generator day tanks do not run empty.

The CTS Mains Fuel Tank Level Alarm box has undergone a redesign for the convenience of the tank manufacturer/installer. It benefits from the same functionality the market knows and loves, but now with external mounting lugs for installation without opening up the tank alarm box, captive screws to prevent accidentally dropping and losing them in the bund and improved cable gland positioning.

If you require a tank level alarm for something other than diesel or light oil, we also supply a water and chemical alarm probe, and a high viscosity oil tank level probe – which is also suitable for AdBlue as well as high viscosity oils. Please see the accessories table for more information.

Please note: Codes SWS5000 and SWS5001 do not come complete with probes. Please view the accessories table to select the combination you need. All cables must be free of electrical noise

Features of the CTS Mains Multi-Compartment Fuel Tank Alarm:

For any combination of high, low, bund
Weatherproof IP55 enclosure with external mounting lugs
LED channel lights up to indicate the issue
85db sounder
Flashing orange strobe
Test and mute functions
Automatically reversed float logic for 'low channels'
Accepts multiple voltages of 110v, 230v, 12v and 24v
Option available with 3 relays
Options with probe/s available - see table
SWS5000 and SWS5001 not supplied with probes - select from accessories table
95m max probe length
Enclosure has rain drip guard above panel and around sounder

Gland plugs supplied to prevent water ingress in unused cable glands

Product Models

Code	Model	Description
SWS5000	CTS Mains Multi-Compartment Fuel Tank Alarm Box Only	Box only - select probes from accessories table Multiple input voltages Orange strobe 85dB sounder
SWS5001	CTS Mains Multi-Compartment Fuel Tank Alarm Box Only c/w 3 Relays	Box only - select probes from accessories table Multiple input voltages Orange strobe 85dB sounder 3 x Relays (C,NO,NC @ 230v 8A)
SWS5009	CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays	Alarm Box c/w Single Probe Multiple input voltages Orange strobe 85dB sounder 3 x Relays (C,NO,NC @ 230v 8A)
SWS5010	CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays	Alarm Box c/w Single & Double Probes Multiple input voltages Orange strobe 85dB sounder 3 x Relays (C,NO,NC @ 230v 8A)

Accessories

Code	Accessory
SWS1035	Single Fuel Tank Alarm Probe - For High Level, Low Level or Bund Alerts - High, low or bund c/w 5m cable and 1.5" brass cap Stainless Steel weight For diesel, fuels, light oils and water
SWS1035/2	Double Fuel Tank Alarm Probe - For high and low level Alerts - High and Low 2 x 5m cable and 1.5" brass cap Stainless Steel weight For diesel, fuels, light oils and water
SWS1038	High Viscosity Fluid Tank Level Alarm Probe Alerts - High or Low c/w 5m cable and 1.5" brass cap For viscous fluids and waste oils
SWS1040	Water & Chemical Tank Level Alarm Probe Alerts - High or Low c/w 5m cable and 1.5" polypropylene cap For water and select chemicals (please check compatibility)
SWS1038AB	AdBlue Tank Level Alarm Probe Alerts - High or Low c/w 5m cable and 1.5" plastic cap For AdBlue
SWS1036	Plastic Tank Kit - For Single Tank Alarm Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
SWS1037	Plastic Tank Kit - For Double Probe Kit for use on a plastic rather than steel tank Steel, flat, round plate 2 x Grommet
SWS1111	Extra Alarm Cable Per Metre
