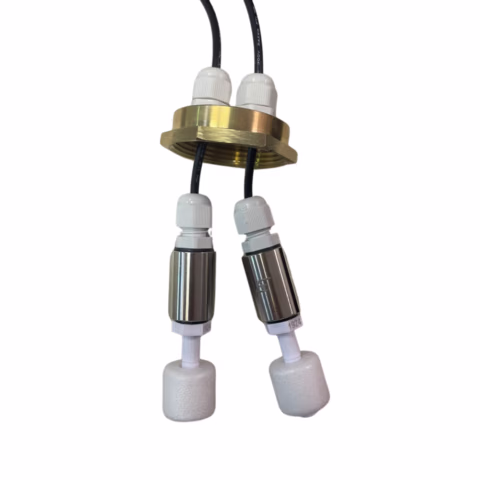

The Double Fuel Tank Alarm Probe is required when a CTS mains or battery fuel tank alarm is purchased to alert the user of two fuel levels; usually high and low. If a bund alert is also a requirement of you fuel storage tank level alarm, then you would also need to purchase a single probe. These alarm probes can be used on other industrial control systems that use a simple reed switch control input.

The standard code for the double fuel tank level switch is designed for use on steel tanks. Please see the accessories table for the kit required to adapt it for plastic tanks.

• For use with the CTS mains or battery tank level alarms
• High/low, high/high or low/low
• 2 x 5m or 10m fuel tank probe cable
• 1 1/2" F BSP brass cap
• 2 x Grommets (same cap)
• PVC, PP, S/S, FKM, Nylon wetted parts
• For high level, low level or bund alert
• For diesel, fuels, light oils and water

• Float is reversible





  Product Models


  Code	Model	Description
  SWS1035/2	Double Fuel Tank Alarm Probe - For high and low level	Alerts - High/low, high/high, low/low Cable - 2 x 5m PVC Temperature - -20°c - +80°c Connection - 1 1/2" F BSP brass cap 2 x Grommet For diesel, fuels, light oils and water Stainless Steel weight
  SWS1035/2/9	10m Double Fuel Tank Alarm Probe - For high and low level	Alerts - High/low, high/high, low/low Cable - 2 x 10m PVC Temperature - -20°c - +80°c Connection - 1 1/2" F BSP brass cap Stainless Steel weight 2 x Grommet For diesel, fuels, light oils and water

  Accessories


  Code	Accessory
  SWS1037	Plastic Tank Kit - For Double Probe Kit for use on a plastic rather than steel tank Steel, flat, round plate 2 x Grommet
  SWS1111	Extra Alarm Cable Per Metre
