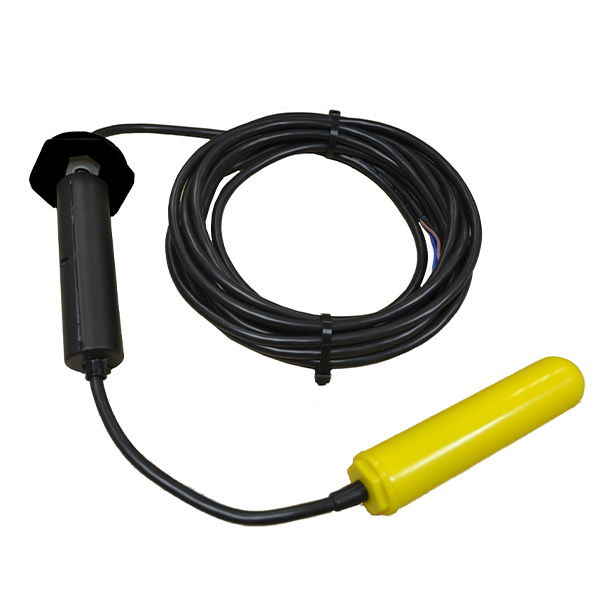

High Viscosity Tank Level Alarm Probe

About the product

This single tank level alarm probe is designed for use with the CTS tank alarms to alert of a high or low level on tanks containing fluids with a high viscosity or containing debris. The primary use of this level switch is for use on waste oil tank alarms for containing oils that need recycling or disposing of in garage and workshop applications, as due to being encapsulated reliable cut off is ensured even with the presence of particles. The supplied weight can be attached to the cable at any desired length to adjust the switching height in high and bund applications.

The standard code for the tank alarm level probe is designed for use on steel tanks. Please see the accessories table for the kit required to adapt it for plastic tanks.

Features of the High Viscosity Tank Level Alarm Probe:

High/low tank level probe for viscous oils
5m PVC cable
1.5" F BSP Plastic cap & cable gland
3 wire NO & NC Contacts
Polypropylene construction
Temp Range: 0°c - +60°c
Max Pressure 4.5kg/cm2
Switching angle (up = 18deg +/- 4deg, down = 3deg +/- 3deg)
3A max switching current

Product Models

Code	Model	Description
SWS1038	High Viscosity Fluid Tank Level Alarm Probe	Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For viscous fluids and waste oils

Code

Model

Description

SWS1038

High Viscosity Fluid Tank Level Alarm Probe

Alerts - High and Low

Cable - 5m PVC

Temperature - 0°c - +60°c

Connection - 1 1/2" F BSP Plastic Cap

For viscous fluids and waste oils

Accessories

Code	Accessory
SWS1036	Plastic Tank Kit - For Single Tank Alarm Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
SWS1111	Extra Alarm Cable Per Metre
