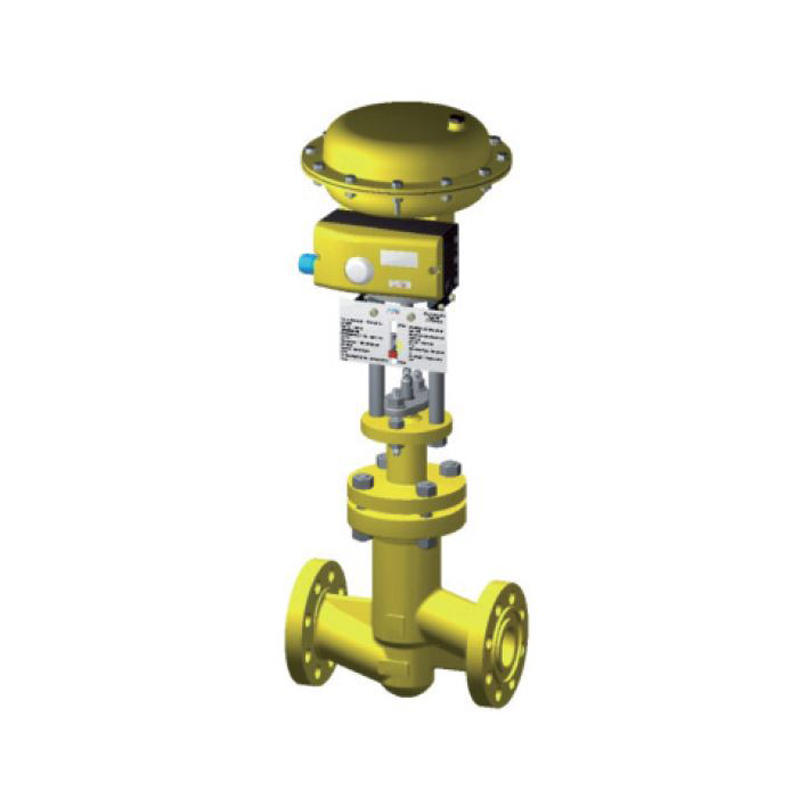

Phoenix 350ec8-9 - Control Valve

Phönix 350ec8-9 - Control Valve

Product Brand: Phönix

Supplied as Straight pattern body

Applications Description

For liquid chlorine service and similar dangerous, toxic, aggressive and corrosive media (for example phosgene)

Specifications:
PN	40
DN	15 - 350
Class	300
NPS	1/2 - 14
Temperature Rating	-40°C up to +120°C
Shell Materials	Carbon steel Low temperature carbon steel Stainless steel Hastelloy Other special alloys
Connections	Flanged ends other connections as required
Operation	Pneumatic piston actuator, Pneumatic diaphragm actuator
Approvals	euro chlor approval 13/05
