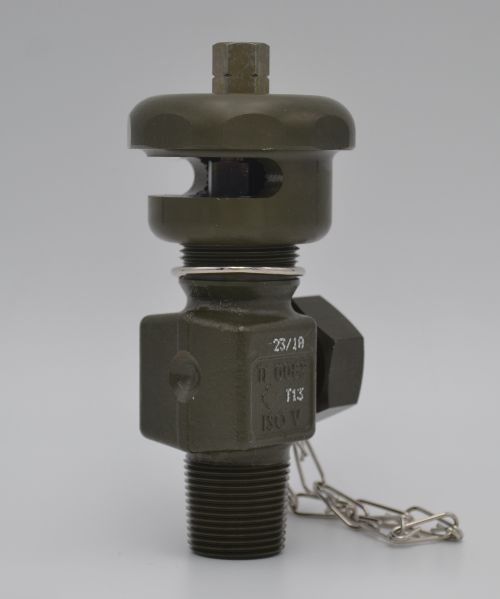

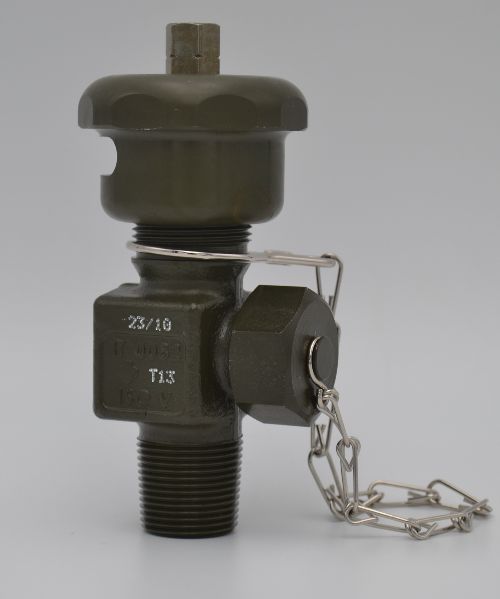

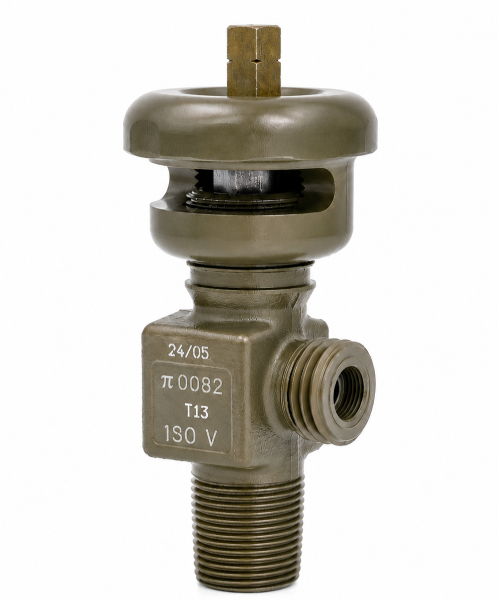

TYPE 13 cylinder valves are packing valves designed primarily for chlorine applications. They can be used for operating pressures up to 25 bar, in green zinc-coasted steel, for all types of inlet and outlet Ø25,4x3,175W.

The design and manufacture of Type 13 guarantee optimum safety in use. The Type 13 body is made of steel treated to achieve an impact strength of 50J/cm² at -40°C. To guarantee this level of resilience, all production batches are subjected to an impact bending test (Charpy test). The Type 13 needle piston remains in the closed position until the handwheel is opened more thant a quarter turn. What's more, should the handwheel no longer allow the needle piston to close, it can be closed instantly with a simple shock (e.g. a hammer).

Last but not least, the advantage of having a packing valve lies in its ability ti stop any leak simply by tightening the stuffing box, thus ensuring a simple and effective solution to the problem.

13型气瓶阀是主要为氯气应用设计的填料阀。它们可用于工作压力高达25巴的绿色锌合金钢，适用于所有类型的入口和出口Ø25,4x3175W。

Type 13的设计和制造保证了最佳的使用安全性。13型车身由经过处理的钢制成，在-40°C下达到50J/cm²的冲击强度。为了保证这种弹性水平，所有生产批次都要进行冲击弯曲试验（夏比试验）。13型针形活塞保持在关闭位置，直到手轮打开超过四分之一圈。更重要的是，如果手轮不再允许针活塞关闭，只需轻轻一震（如锤子）即可立即关闭。

最后但并非最不重要的一点是，填料阀的优点在于它能够通过拧紧填料函来阻止任何泄漏，从而确保简单有效地解决问题。

ACCESSORIES :

• Dip tubes
