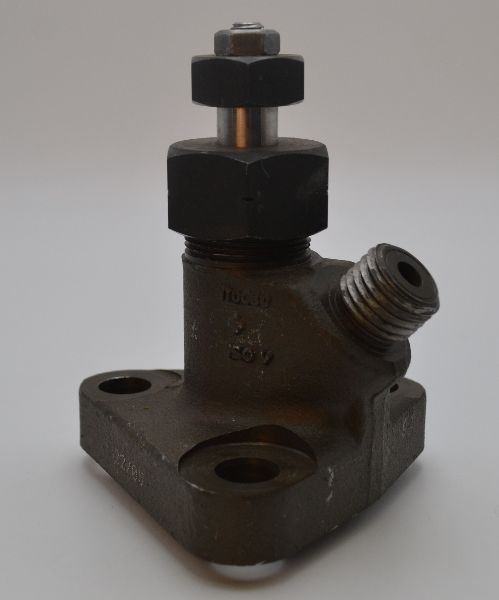

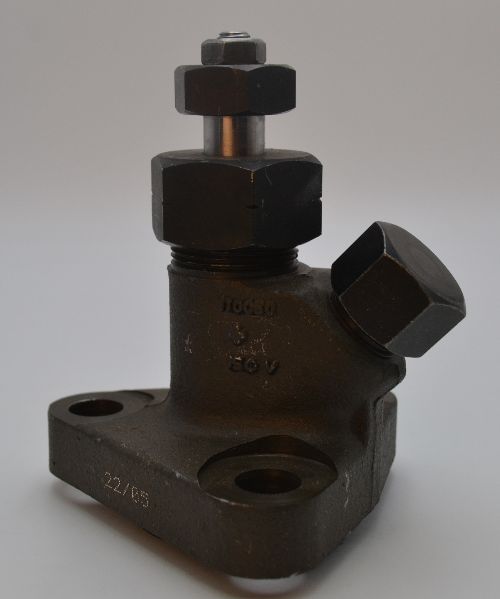

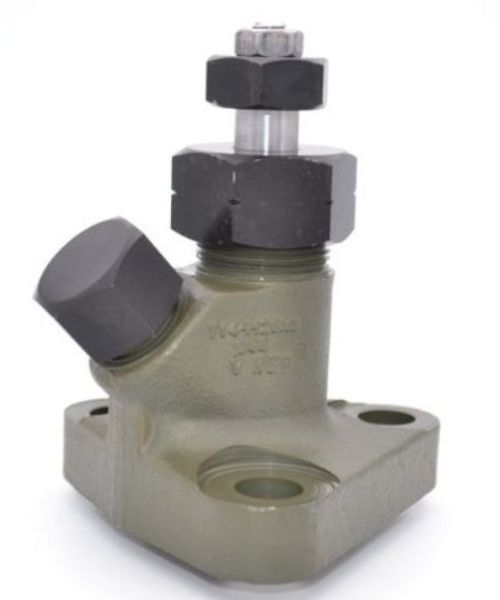

TYPE 14 chlorine tanks are packing valves for chlorine drums. They can be used for operating pressures up to 29 bar. They can be supplied with a 5 mm or 8 mm base plate, with a G3/4 inlet and a Ø25,4x3,175W outlet.
The advantage of a packing valve lies in its ability to stop any leak simply by tightening the stuffing box, thus ensuring a simple and effective solution to the problem.
14型氯罐是氯桶的填料阀。它们可用于高达29巴的工作压力。它们可以配备5毫米或8毫米的基板，G3/4入口和Ø25,4x3175W出口。
填料阀的优点在于，它能够通过拧紧填料函来阻止任何泄漏，从而确保简单有效地解决问题。
|
SPECIFICATIONS:
|
|
| Material | Steel |
| Operating pressure | Up to 29 bar |
| Acrcreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure: | No |
| Operating temperature: | -20 °C to +65°C |
| Storage and transport temperature: | -40°C to +65°C |
| Flow diameter: | 9 mm |
| Safety device: | With or without fuse socket |
| Wheel: | 32 mm hexagonal nut on flat surface |
| Finishes: | Green zinc-plated |
| Option: | Engraving of your logo or other |
ACCESSORIES :
