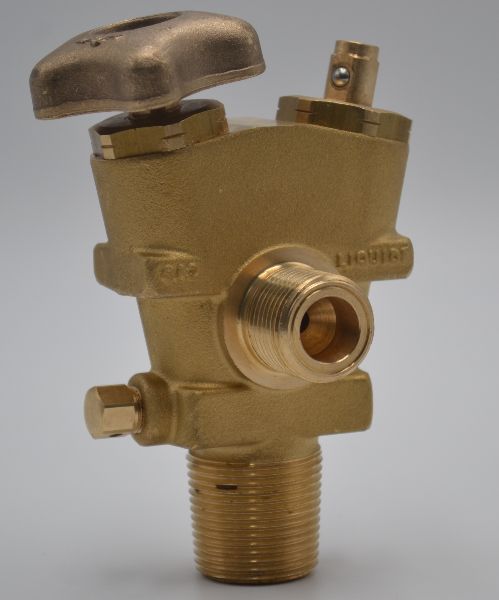

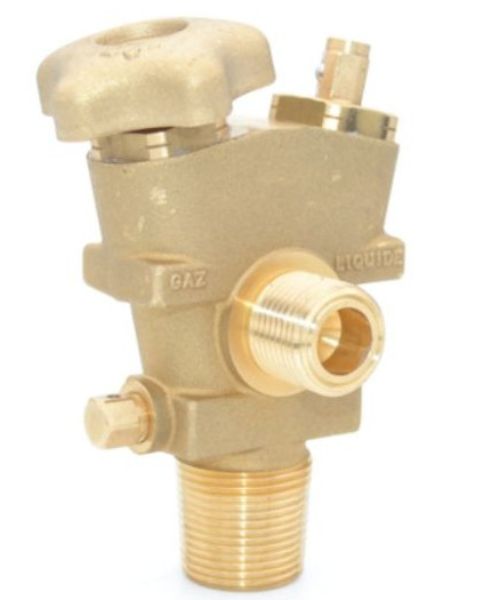

TYPE 3P cylinder valves are double-phase, O-ring high-pressure valves suitable for all types of compressed, dissolved or mixed gases. They can be used for operating pressures up to 250 bar, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
3P型气瓶阀是双相O型圈高压阀，适用于所有类型的压缩、溶解或混合气体。它们可用于高达250巴的工作压力，有或没有安全保护，黄铜或镀镍，适用于所有入口和出口类型，以适应应用和所需的国家标准。
|
SPECIFICATIONS:
|
|
| Material: | Brass |
| Operating pressure: | up to 250 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure: | No |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40°C to +65°C |
| Flow diameter: | 4mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | 48 mm brass, clip-on |
| 48 mm brass, nickel-plated, clip-on | |
| 40 mm black latamid | |
| Finishes: | Brass or nickel-plated |
| Option: | Engraving of your logo or other |
ACCESSORIES:
