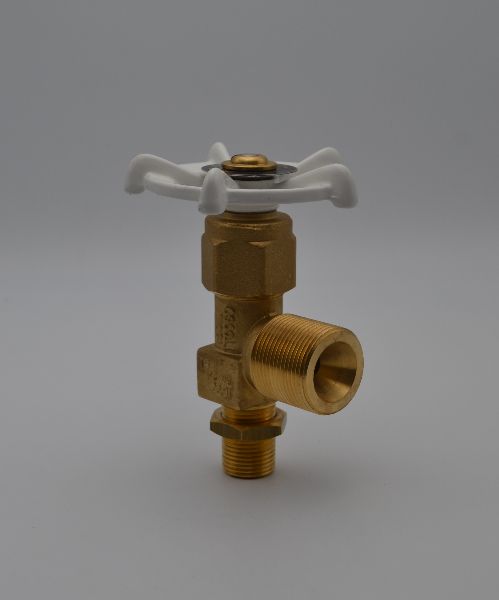

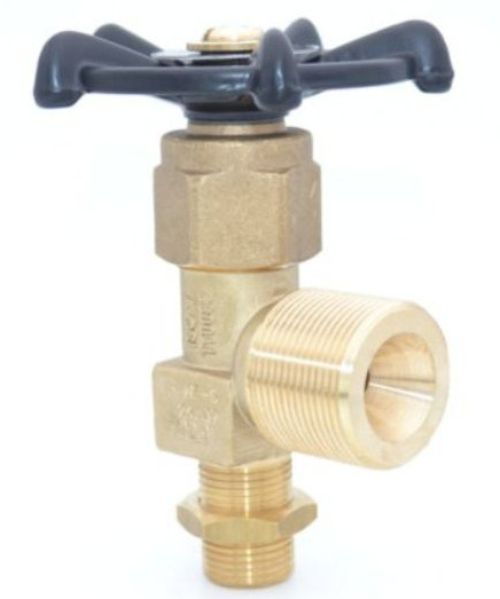

TYPE 5 frame valve are high-pressure O-ring valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for oerating pressures up to 300 bar, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
In view of their high flow rate, TYPE 5 valves are best suited to frame applications.
5型框架阀是高压O型圈阀，适用于所有类型的压缩、溶解或混合气体，包括氧气。它们可用于将压力提高到300巴，有或没有安全保护，黄铜或镀镍，适用于所有入口和出口类型，以适应应用和所需的国家标准。
鉴于其高流速，5型阀门最适合框架应用。
| SPECIFICATIONS: | |
| Material: | Brass |
| Operating pressure: | Up to 300 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure: | No |
| Operating temperature: | - 20°C to +65°C |
| Storage and transport temperature: | -40°C to +65°C |
| Flow diameter: | 5 mm to 9 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | In brass, 64 mm |
| 100 mm black aluminum | |
| 100 mm white aluminum | |
| Finishes | Brass or nickel-plated |
| Options: | Engraving of your logo or other |
