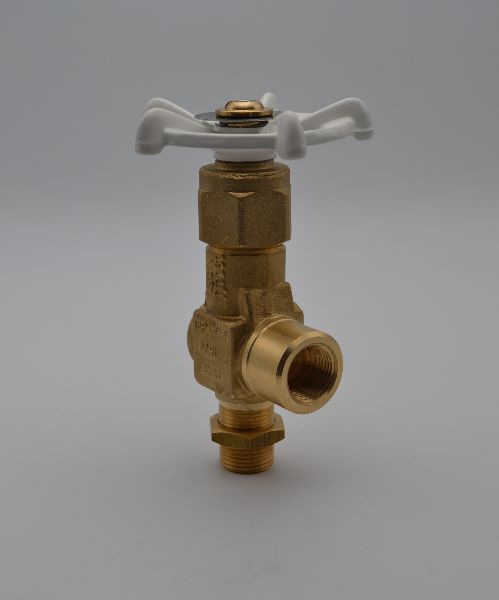

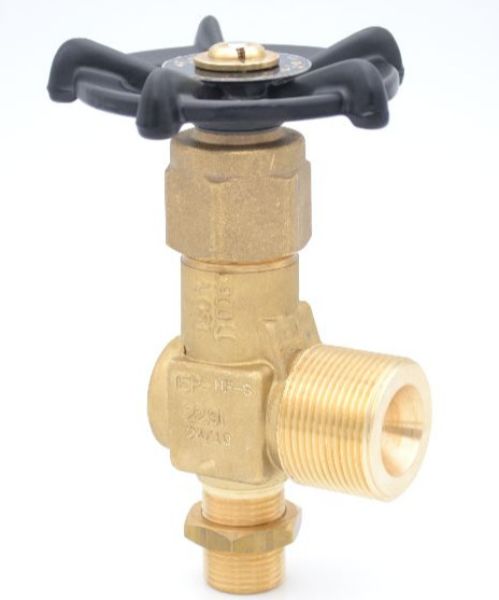

TYPE 5P frame valves are high-pressure, residual-pressure, O-ring-sealed valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for operating pressures up to 300 bar, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
In view of their high flow rate, TYPE 5P valves are best suited to frame applications.
5P型框架阀是高压、残余压力、O型圈密封阀，适用于所有类型的压缩、溶解或混合气体，包括氧气。它们可用于高达300巴的工作压力，有或没有安全保护，黄铜或镀镍，适用于所有入口和出口类型，以适应应用和所需的国家标准。
鉴于其高流速，5P型阀门最适合框架应用。
|
SPECIFICATIONS:
|
|
| Material: | Brass |
| Operating pressure: | Up to 300 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| EN ISO 15996 | |
| Residual pressure | Yes |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40 °C to +65°C |
| Flow diameter: | 5 mm to 9 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | Brass, 64 mm |
| 100 mm black aluminum | |
| 100 mm white aluminum | |
| Finishes | Brass or nickel-plated |
| Options: | Engraving of your logo or other |
