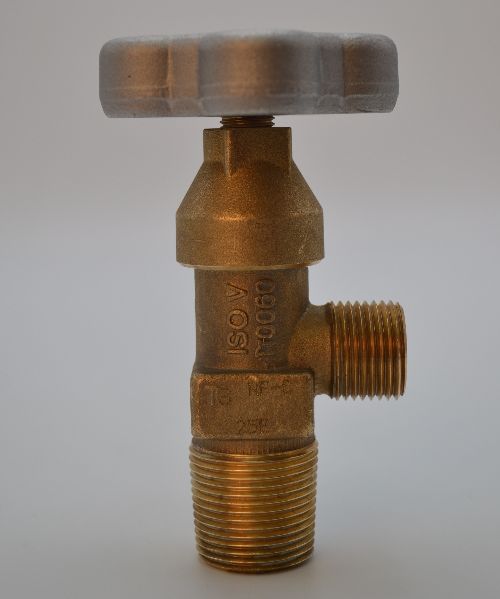

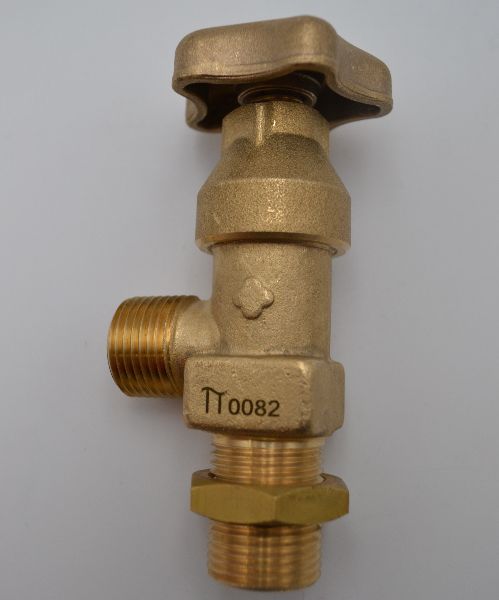

TYPE 8P cylinder valves are high-pressure, O-ring residual-pressure valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for operating pressures up to 250 bar, with or without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the requires national standard.
TYPE 8P valves are mainly intended for cylinders, thanks to their 4mm bore, but can also be used for frames.
8P型气瓶阀是高压O型圈残余压力阀，适用于所有类型的压缩、溶解或混合气体，包括氧气。它们可用于高达250巴的工作压力，有或没有安全保护，黄铜或镀镍，适用于所有入口和出口类型，以适应应用和所需的国家标准。
8P型阀门主要用于气缸，因为其内径为4mm，但也可用于框架。
| SPECIFICATIONS: | |
| Material: | Brass |
| Operating pressure: | Up to 250 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| EN ISO 15996 | |
| Residual pressure: | Yes |
| Operating temperature: | -20°C to +65°C |
| Storage and transport temperature: | -40°C to +65°C |
| Flow diameter: | 4 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | Brass, 48 mm |
| 48 mm white brass | |
| 48 mm nickel-plated brass | |
| 64 mm aluminum | |
| Finishes: | Brass or nickel-plated |
| Option: | Engraving of your logo or other |
ACCESSORIES :
