E-Dial

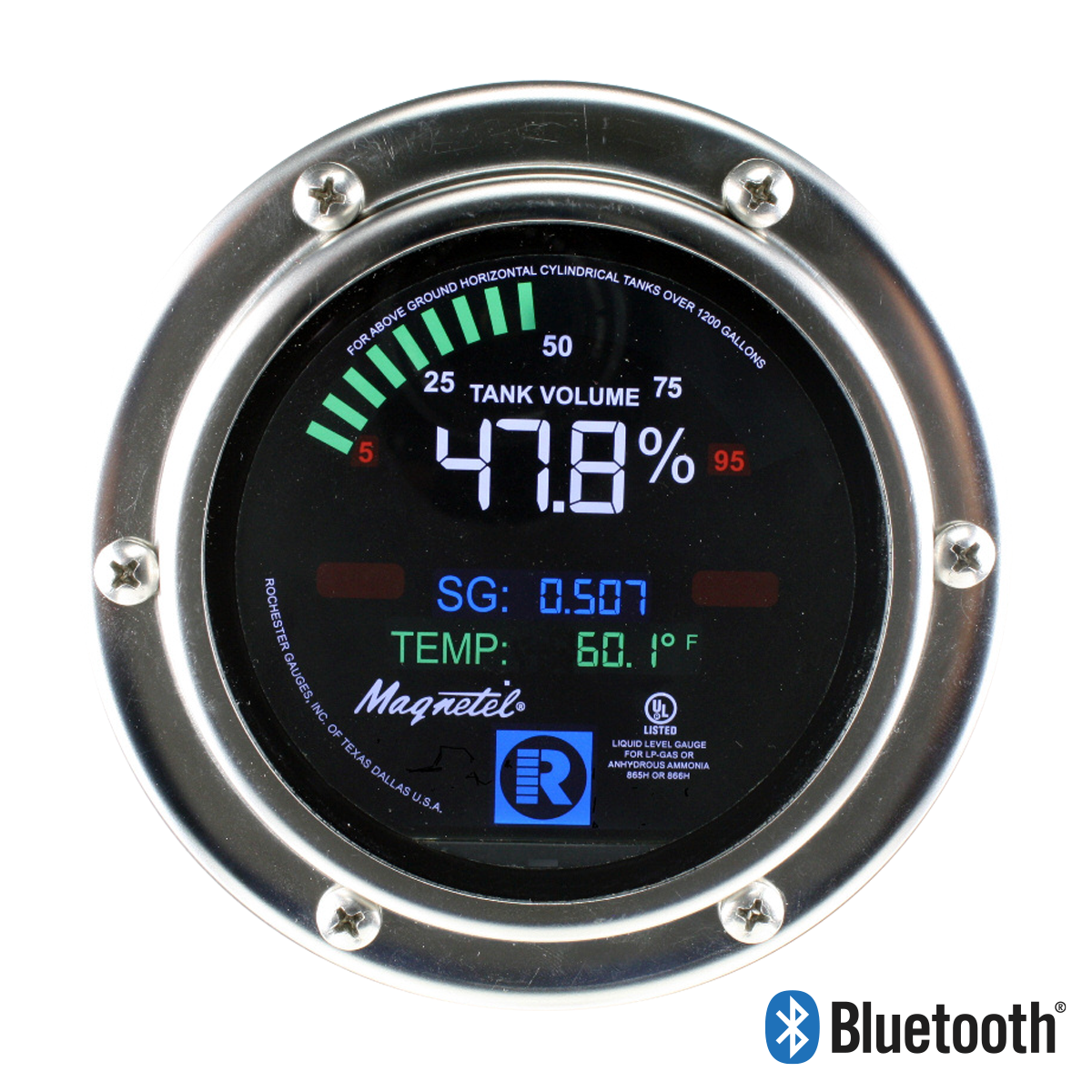

MAGNETEL ELECTRONIC DIAL FOR TRANSPORTS AND BOBTAILS

Application
The Magnetel Electronic Dial provides:

• Automatic Temperature Compensated Volumetric Level reading of tank contents (Optionally can display non compensated level)
• Temperature readings of tank contents
• Displays Specific Gravity of tank contents
• Two Independent Level Alarms (Programmable by user)
• 4-20mA analog output for interfacing to third party controls
• Wireless setup and remote read capability
• (Optional) Field Calbration of Zero and Span to elimate installation errors

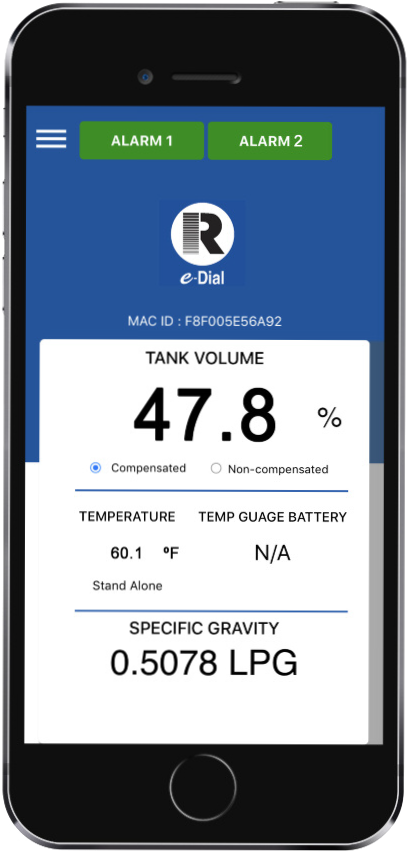

Temperature, liquid level and other parameters are available via wireless low energy BLE communication. An optional Rochester wireless Temperature Sensor (sold separately) can be paired for continuous automatic temperature compensation of liquid levels. User can set up the unit by downloading the E-dial app (available for IOS and Android) and perform the following functions:

• Option to set up E-dial alone or paired with Temperature Sensor (to allow continuous automatic temperature compensation of liquid levels)
• Selection of Specific Gravity of tank contents
• Setup of two independent level alarms
• Setup of 4-20mA analog output
• Selection of application range (5% – 95% or 3% – 97%)

General Information & Features

• Retrofittable* on existing Rochester Magnetel and Taylor RoadMaster Gauges
• 15 ft. of cable with flying leads for
  • Power/Ground
  • Signal Output
  • 2 Alarm Outputs
  • Calibration Input
• Dial Accuracy: +/- 1%
• LCD Dial Display
• Supply Voltage: 9 – 32 VDC
• Supply Current; 250mA Max
• Analog Output: 4-20 mA (+/- 1%)
• Resolution: 0.1%

NOTE: Use with third party tank gauges is not recommended, may result in issues with accuracy and stability.
