SCULLY Auto-Detect Rack Controller

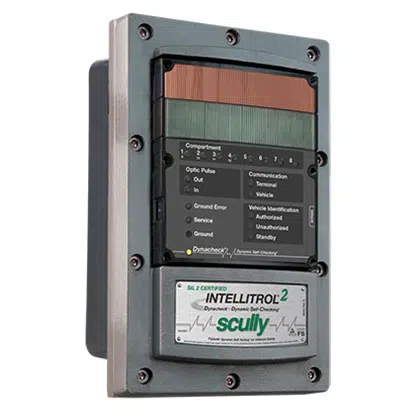

SCULLY Auto-Detect Rack Controller – Intellitrol®2

Auto-Detect Rack Controller – Intellitrol®2

The Most Advanced Terminal Overfill Prevention & Ground Verification System Available

The only control system that offers all-in-one overfill prevention, static grounding, and vehicle identification
The ultimate in terminal loading safety with a patented design that continuously monitors the relay contacts—for petroleum and chemical loading racks
Incorporates Dynacheck® Dynamic Self-Checking® circuitry for overfill prevention, ensuring that every critical component is automatically and continuously checked for maximum loading safety
(Includes control unit, wiring, and sensor circuitry. If a fault is detected, it signals a loading shutdown to prevent product overfill.)
The number one choice worldwide, with over 15 years of proven performance in the field

Tech Specs

Features

Auto-Detect Rack Controller – Intellitrol®

Automatic detection of two-wire optic/thermistor or five-wire optic vehicle sensors
Monitoring of up to 8 two-wire or 12 five-wire vehicle sensors
Complete visual diagnostic display of overfill sensor’s status as well as vehicle static grounding conditions; will not permit loading under any fault or wet sensor condition
A vehicle identification module is available, which reads the truck-mounted vehicle identification T.I.M.® module and important vehicle data—loading can be prevented based on specific criteria, which the terminal determines such as insurance, certifications, and billing
Complete compatibility with Scully Intellicheck® and Load Anywhere® onboard systems
Easy connection to vehicles with rugged high-impact Scully plug and cable units (order separately)

Ordering Information

Control Units

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Intellitrol®2 data sheet posted above.

Part #	Model #	Description	Approvals*
09549	IC2-OG	Intellitrol Overfill Prevention & Ground Verification	FM/CSA
09550	IC2-OGV	Intellitrol Overfill, Ground Verification and V.I.P.	FM/CSA

*Factory Mutual and Factory Mutual Canada Intrinsic Safety Approvals for Hazardous Environments. For more approval information see the Technical Specs tab for this product.

System Accessories

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Intellitrol®2 data sheet posted above.

Part #	Description
08939	Bypass Key Authorizer
08863	Deadman Control Switch Assembly
09001	USB to RS-485 Converter Kit (for communications)

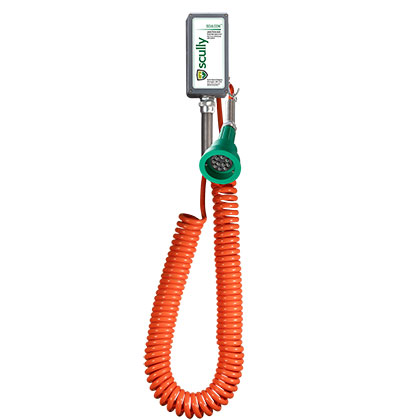

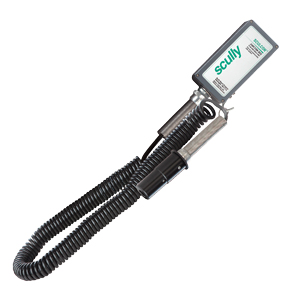

08958NV	SC-8OB Sculcon Junction Box with 8B Style Black Poly Plug and 6 meter (20 ft) Blue Straight Cable (for 2-wire or 5-wire sensors – 4-bayonet pins – 10 contact pins)
08959NV	SC-8B Sculcon Junction Box with 8B Style Green Poly Plug and 6 meter (20 ft) Blue Straight Cable (for 2-wire or 5-wire sensors - 4 bayonet pins - 10 contact pins)
09146NV	SC-8OB Sculcon Junction Box with 8B Style Black Poly Plug and 6 meter (30 ft) Blue Coiled Cable (for 2-wire or 5-wire sensors – 4-bayonet pins – 10 contact pins)
27326	Cable, 10 Conductor, Blue Straight,.71 Outer Dimension

Replacement Parts

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Intellitrol®2 data sheet posted above.

Part #	Description
09551	Module Assembly, 2-OG 240V
09552	Module Assembly, 2-OGV 120V
09577	Module Assembly, 2-OGV 240V
09576	Module Assembly, 2-OG 120V
50005	Cover Bolt, M8 x 1.25 x 25mm
26372	Contact Fuse (F5, F8), 5A, Hi-interrupt
31340	Cover O-ring (gasket)
40268	Corrosion Inhibitor
09181 (ATEX)	Lens Assembly (with 6 mounting screws)
08980 (FM)	Lens Assembly (with 6 mounting screws)
08981	Display Circuit Board Module (with backing plate)
08982	Display Cable Feed-through
50080	Lens Mounting Screw, 8-32 x 3/4
54039	Retaining Ring, Cover Hinge
38052*	Text Mask (English), Overfill and Ground
38053*	Text Mask (English), Overfill, Ground and Vehicle ID
09481	Heat Sink Assembly
