SCULLY Ball-Valve Delivery Nozzle Sculflow®-

SCULLY Ball-Valve Delivery Nozzle Sculflow®

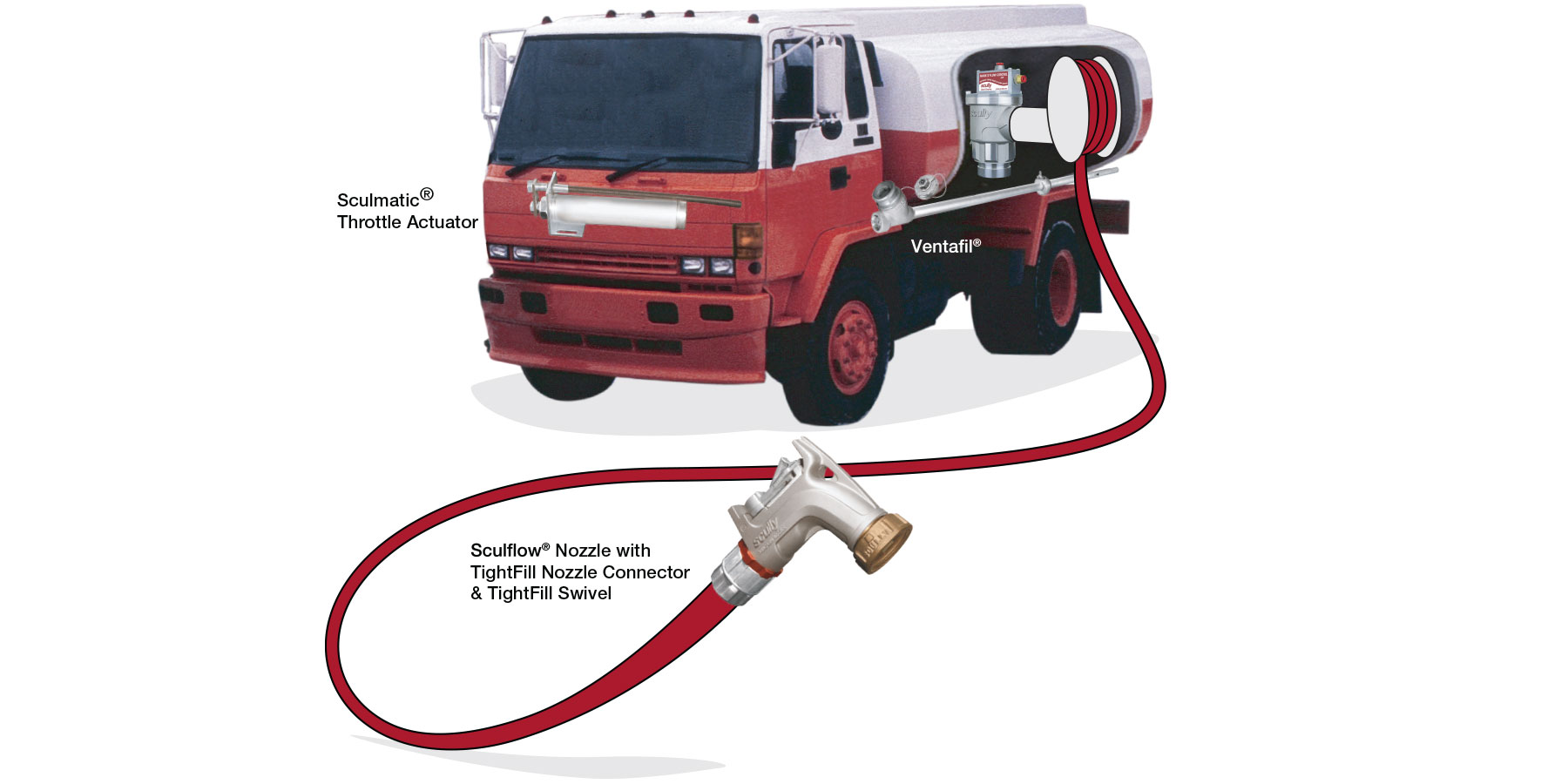

The Most Popular Delivery Nozzle in the World

The leading choice for light product, high volume deliveries.
Reduced pressure drop allows for faster pumping speeds.
Prevent closing shock to prolong truck equipment life.
Original ball valve design and deadbolt locking handle.
Advanced ball bearing swivel design allows for easy rotation at all operating pressures.
Teflon high recovery seal and shielded bearings for optimum swivel field performance.
Wide variety of liquid product use.

Tech Specs

Features

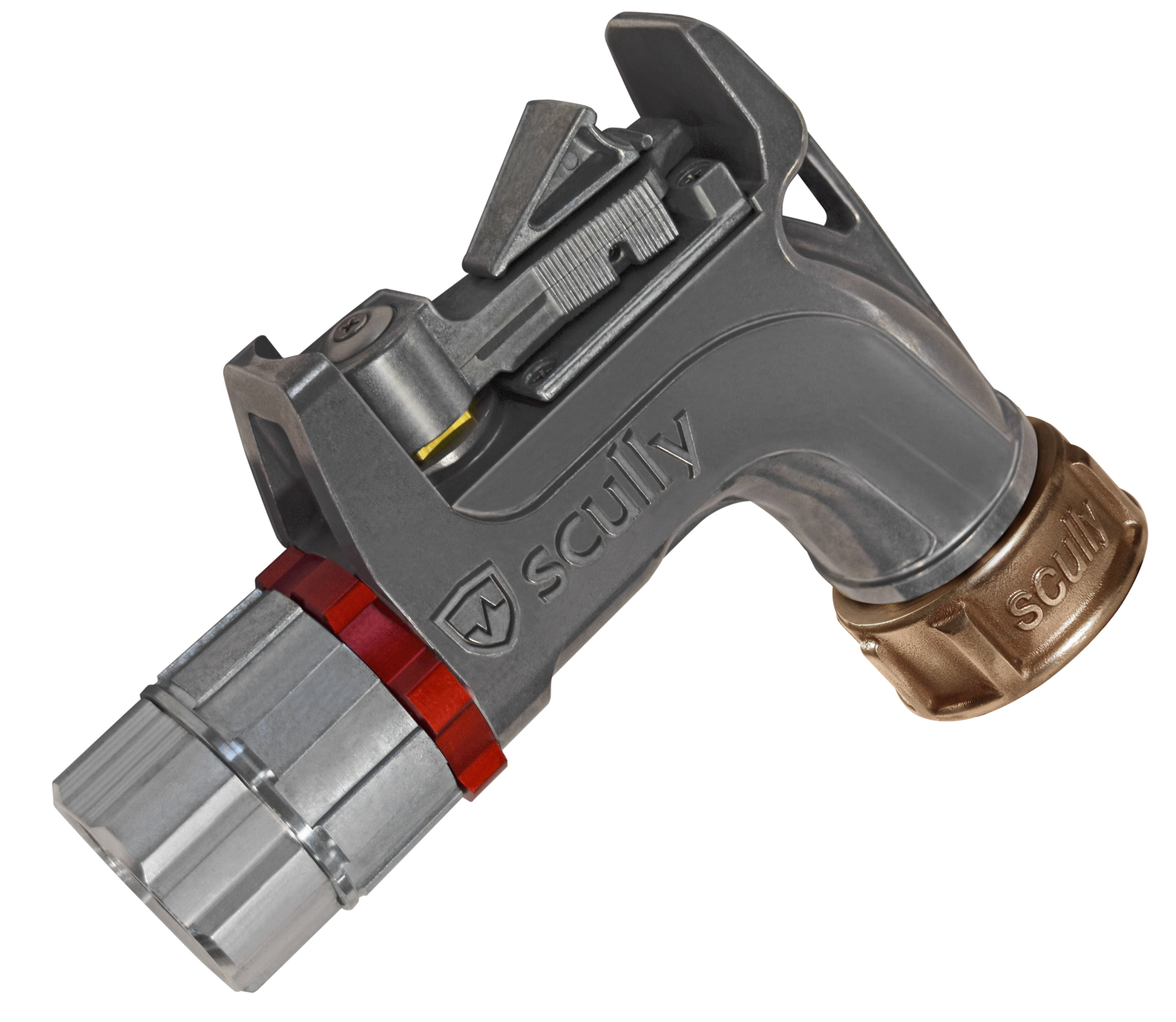

Ball-Valve Delivery Nozzle Sculflow® Enhancements

The Sculflow nozzle has been laboratory tested in collaboration with NORA in various blends up to B100 and proven to work effectively. Additionally, it has been successfully used by fuel delivery companies with high biofuel blends, including B50.

The Sculflow SF2 features:

An enhanced mechanism securing the anti-drip valve that will reduce droplets over time.
A wider grooved grip trigger which is easier to maneuver in wet conditions including while wearing gloves.
A handle assembly that avoids over rotation of the ball valve for ease of shut off.
A new handle seal protecting against very corrosive truck cleaner materials.

Ordering Information

Ball-Valve Delivery Nozzle

The ordering information below is for Sculflow SF2 North America units. For other regions’ models see data sheet posted above under Tech Specs.

Part #	Inlet Style	Inlet Thread	Outlet Thread
05062-SF2	FEMALE	1-1/4″	Unifil® Nozzle Connector
05066-SF2	FEMALE	1-1/4″	1-1/4″ Female NPT
05070-SF2	FEMALE	1-1/4″	1-1/2″ Female NPT
05064-SF2	FEMALE	1-1/2″	Unifil® Nozzle Connector
05068-SF2	FEMALE	1-1/2″	1-1/4″ Female NPT
05072-SF2	FEMALE	1-1/2″	1-1/2″ Female NPT
05100-SF2	MALE	1-1/4″	Unifil® Nozzle Connector
05106-SF2	MALE	1-1/2″	Unifil® Nozzle Connector

All new units shipped have 5 P.S.I. anti-drip valves.
All units listed include swivels.
Note: 1-1/4″ nozzles fit 1-1/4″ hoses; 1-1/2″ nozzles fit 1-3/8″ hoses

Sculflow SF2 Replacement Parts

The ordering information below is for Sculflow SF2 North America units. For other regions’ models see data sheet posted above under Tech Specs.

Swivels

Part #	Inlet Thread Style	Inlet Thread Size	Male Outlet Thread
05815	FEMALE	1-1/4″	COM-A
05816	FEMALE	1-1/2″	COM-A
05865	MALE	1-1/4″	COM-A
05868	MALE	1-1/2″	COM-A

Outlets

Part #	Inlet Thread Style	Inlet Thread Size	Male Outlet Thread
10254	FEMALE	1-1/4″	COM-A
10255	FEMALE	1-1/2″	COM-A

Parts and Kits

Part #	Description
04334	8" x 1-1/2" Aluminum Spout
06302	8" x 1-1/2", 1-1/4" NPT Brass Spout
06303	6.5" x 1.9", 1-1/2" NPT Brass Spout
04346	Unifil® Nozzle Connector
05421	Sight Glass Assembly Kit
104000002	Handle & Latch Assembly
104000002BULK	Qty 5 Handle & Latch Assembly
104000001	Anti-Drip Valve Assembly
104000001-R	SF2 Anti-Drip Valve Assembly w/ Brown Viton O-Ring
104000001BULK	Qty 5 Anti-Drip Valve Assembly
05416-SF2	Nozzle Rebuild Kit
11604-SF2	Handle Upgrade Kit
05415-SF2	Nozzle Seal Kit
11265	Brown Viton O-Ring

Sculflow SF1 Replacement Parts

The ordering information below is for the Sculflow SF1 North America units replacement parts. For other regions’ models see data sheet posted above under Tech Specs.

Part #	Description
04318	O-Rings for Nozzle Connector (Qty.3)
04346	Nozzle Connector
05415	Seal Kit, No Swivel Parts
05416	Nozzle Rebuild Kit
05421	Sight Glass
10220BULK	Bushing, for all Nozzles, BULK 10 (also sold 1 each- use Part # 10220)
10221BULK	Shim-Control Rod, for all Nozzles, BULK 25 (also sold 1 each- use Part # 10221)
11595BULK	Latch Plate, BULK 10 (also sold 1 each- use Part # 11595)
11602BULK	Control Rod, BULK 10 (also sold 1 each- use Part # 11602)
104000002BULK	Handle & Latch Assembly Kit, BULK 5 (also sold 1 each- use Part # 104000002)
11604	Handle Upgrade Kit
10224BULK	Seat & O-Ring, BULK 10 (also sold 1 each- use Part # 10224)
10225BULK	Plated Ball, BULK 10 (also sold 1 each- use Part # 10225)
11265BULK	Outlet O-Ring, BULK 5 (also sold 1 each- use Part # 11265)
11502BULK	Anti-Drip Valve, 3PSI, BULK 5 (also sold 1 each- use Part # 11502)
11503BULK	Anti-Drip Valve, 5PSI, BULK 5 (also sold 1 each- use Part # 11503)
