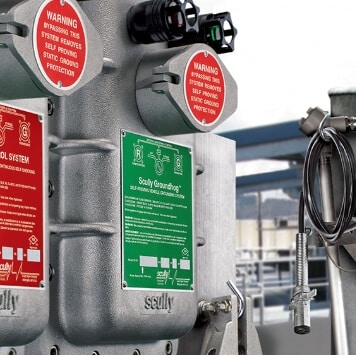

Static Ground Proving Controller ST-47 Groundhog™
Vehicle Static Ground Verification System Self-proving technology ...

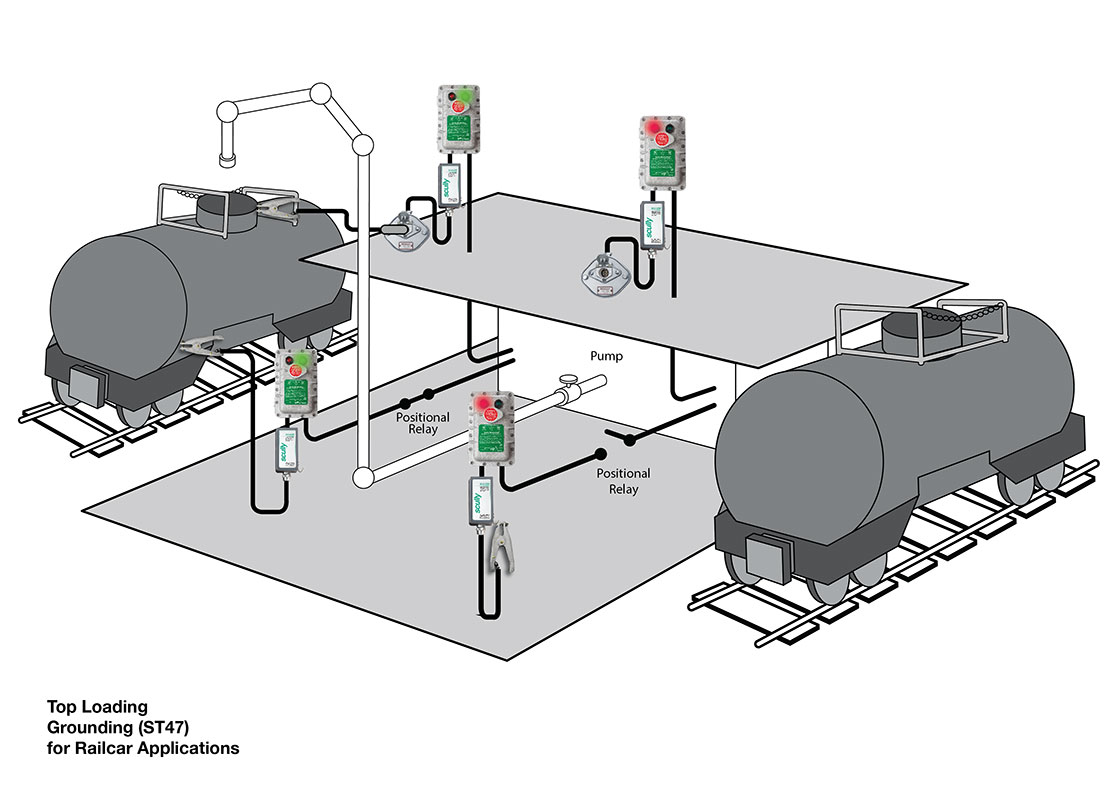

Spring-loaded connectivity for static bond verification in truck trailer, railcar, aviation, and food and beverage liquid transfer applications.

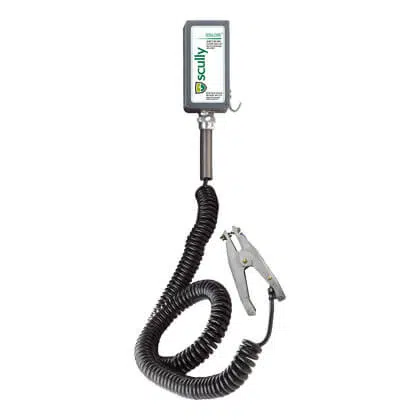

For use with Sculcon Junction Box, Model SC-47CC/CLMP
Verification of static bond when properly connected to the trailer frame
Intrinsically safe operation
Spring-loaded clamp jaws with adjustable stainless steel contact pins for a solid bond to the trailer frame
Heavy-duty, weather-sealed aluminum junction box to house cable wiring
The clamp and cable disconnect from the junction box during a drive off, preventing damage to the control monitor and maintaining intrinsic safety
|
Part #
|
Description
|
|---|---|
| 08815 | SC-47CC/CLMP Sculcon Junction Box, Clamp and 32' Coiled Cable |
| 09333 | SC-47/CLMP Sculcon Junction Box, Clamp, and 20′ Straight Cable |
|
Part #
|
Description
|
|---|---|
| 27647 | Terminal Strip, 12-position |
| 32445 | Strain Relief, 3⁄8″, for Grounding Cable |
| 31766 | Clamp and Cable Assembly, 32′ Coiled Cable |
| 32665 | Clamp and Cable Assembly, 20′ Straight Cable |
| 31778 | Replacement Clamp |
| 32319 | Sculcon Box Assy, general purpose |
