SCULLY Five-Wire Optic Sensors

SCULLY Five-Wire Optic Sensors – SCUL-SENSE™

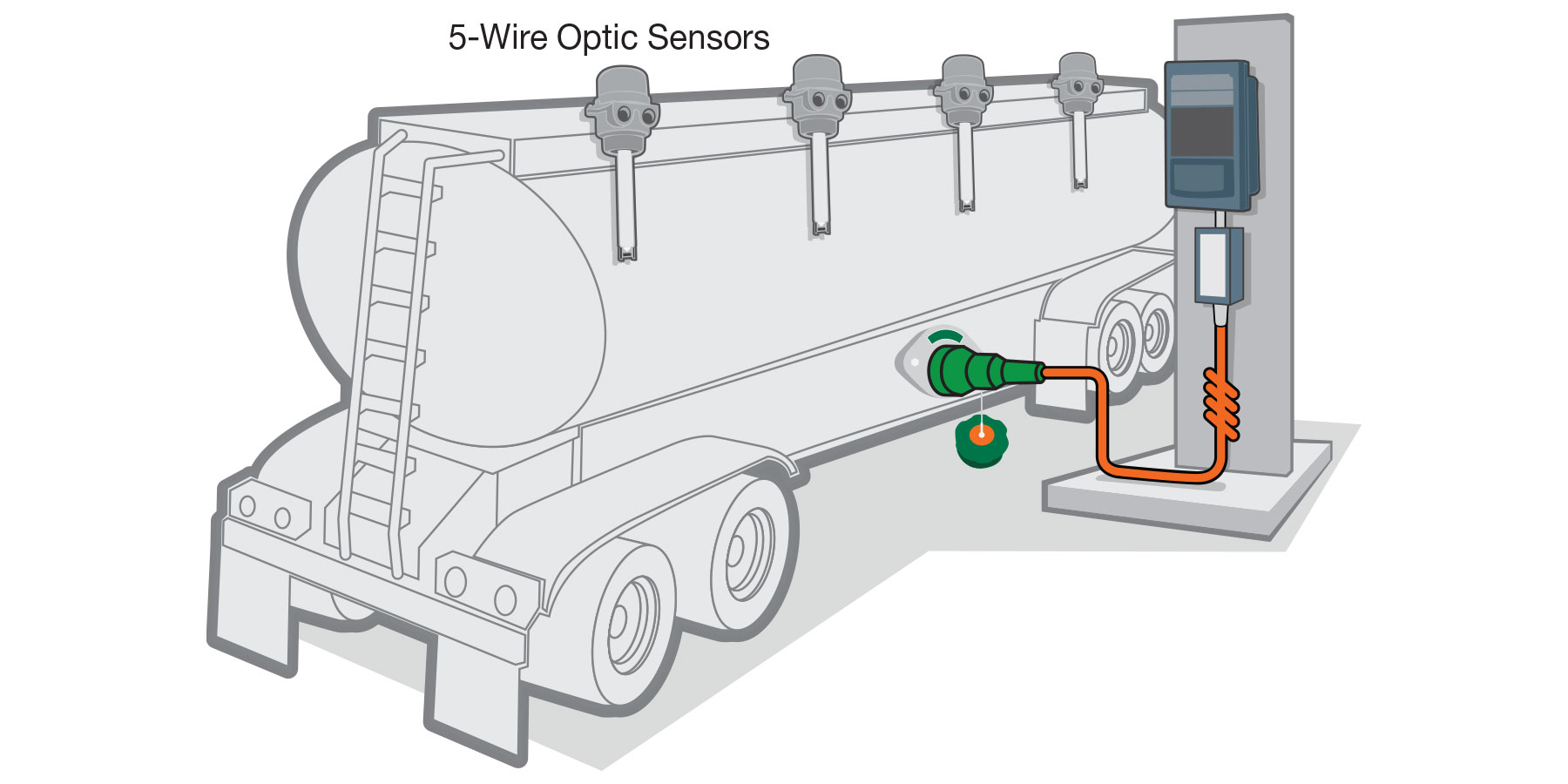

Scully’s Original Optic Liquid Level Sensor for Tank Trailer Overfill Prevention

Features Dynacheck® Dynamic Self Checking Circuitry for safe and reliable loading operations
Designed to be used with the Scully Intellitrol® and ST-35 series loading rack control monitors
Can also be used with the Scully IntelliCheck® 3, IntelliCheck®2, or Scully Load Anywhere® onboard truck control units
Overfill prevention applications include road tankers, rail cars, and storage tanks
Provides consistent fail-safe overfill prevention and liquid level monitoring when used in conjunction with Scully electronic control equipment

Tech Specs

Features

Five-Wire Optic Sensors - SCUL-SENSE™

Ensures a safe and reliable loading operation by constantly checking a “closed loop” pulsing signal across the entire system
Requires no warm-up time
Eliminates operator involvement to end the loading operation—pumps and valves are automatically shut down if rising fuel contacts the sensor
Can be wired in series for compatibility with Scully Load Anywhere® or IntelliCheck®3 onboard monitors
Compatible with Scully Load Anywhere®, Intellicheck®3 and 3R, Intellitrol®2, and ST-35C

Ordering Information

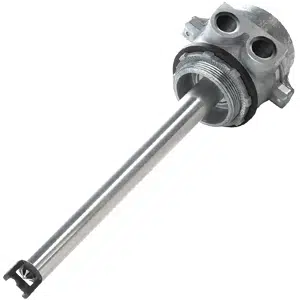

Five Wire Optic Sensor

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Five-Wire Optic Sensor data sheet posted above.

Part #	Model	Description	Shaft Length
09208L1	SP-FU/MHC(MC)	Five-Wire Optic Sensor, 2″ NPT holder, 2 1⁄8″medium cap	7″ (175mm)
09213L1	SP-FU/MHC (MC)		12″ (300mm)
09216L1	SP-FU/MHC (MC)		15″ (375mm)
09207L1	SP-FU/MHCF(MC)	Five-Wire Optic Sensor, flanged holder, 2 1⁄8″ medium cap	7″ (175mm)
09212L1	SP-FU/MHCF		12″ (300mm)
09215L1	SP-FU/MHCF		15″ (375mm)

Replacement Parts

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Five-Wire Optic Sensor data sheet posted above.

Part #	Model	Description	Shaft Length
09209L1	SP-FU	Five-Wire Optic Sensor (without holder)	7″ (175mm)
09214L1	SP-FU		12″ (300mm)
09217L1	SP-FU		15″ (375mm)
09065	SP-MHC(MC)	2″ NPT Threaded Holder Only
08265	SP-MHCF(MC)	Flanged Holder Only
09215L1	SP-FU/MHCF (MC)		15″ (375mm)
