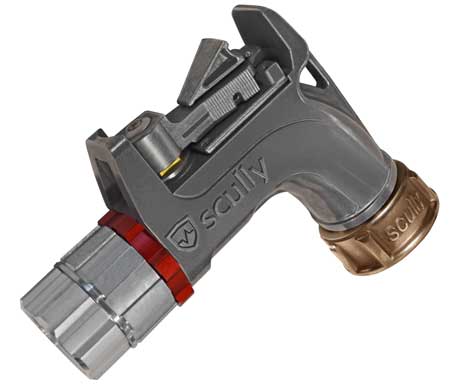

Ball-Valve Delivery Nozzle Sculflow®
The Most Popular Delivery Nozzle in the World The leading choice for ...
Pumping rate is controlled from the nozzle to permit high pumping speeds and delivery control
Check valve required by weights and measures
Flow control switch and check valve combined in one unit
Reduces hose pressure at idled speed and eliminates damaging surge and shock pressures
Prevents hose reel movement

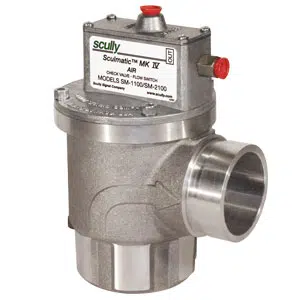

A check valve with either an air or electric flow switch to be used with the Sculflow nozzle
Victaulic inlet and outlet for leak-free connection; threaded version also available
Available with electric or air switch
Prevents hose reel movement
1/4” gauge port
20 amp normally open electrical switch (electric models only)
Less than 7 P.S.I. pressure drop at 100 G.P.M.
3 P.S.I. cracking pressure at zero flow
Viton poppet seal
No gasoline use
|
Part #
|
Inlet
|
Outlet
|
Switch
|
Model #
|
|---|---|---|---|---|
| 06818 | 2″ Female | 2″ Grooved | Electric | SM 1000 |
| 06817 | 2″ Female | 2″ Grooved | Air | SM 1100 |
|
Part #
|
Description
|
Model #
|
|---|---|---|
| 06870 | Air loss protection valve | SM 644 |
| 06874 | Shuttle valve | SM 1053 |
| 06830 | Electric conversion kit*, standard | SM 6830 |
| 06831 | Air conversion kit*, standard | SM 6831 |
| 11200 | Air switch | MK IV or MK V |
| 11525 | Poppet assembly | MK IV |
| 11506 | Viton Seal replacement kit | MK IV |
| 11507 | Air switch replacement kit | MK IV or MK V |
| 11508 | Electric switch for MK IV flowswitch | – |
