SCULLY High Volume Delivery Nozzle

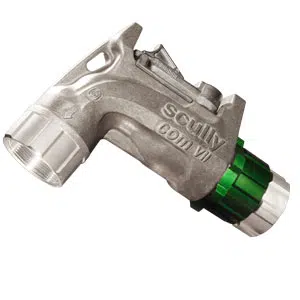

SCULLY High Volume Delivery Nozzle – Super Nozzle

A ball-valve design with a deadbolt locking handle ideal for high volume lightweight product delivery up to 200 gallons per minute

Advanced ball bearing design allows for easy rotation at all operating pressures
Teflon high-recovery seal and shielded bearings for optimum field performance
Lightweight aluminum and zinc construction
Wide range of liquid product uses

The ordering information below is for North America units. For other regions’ models see data sheet posted above under Tech Specs.

Part #	Inlet Style	Inlet Thread	Outlet Thread
05917	5 P.S.I. FEMALE	1-1/2″	1-1/2″ Female NPT
05919	5 P.S.I. FEMALE	2″	1-1/2″ Female NPT
05924	5 P.S.I. FEMALE	2″	2″ Female NPT

The ordering information below is for North America units. For other regions’ models see data sheet posted above under Tech Specs.

Part #	Description
04318	O-Rings for Nozzle Connector (Qty.3)
05420	Sight Glass
05933	Seal kit, No Swivel Parts
05934	Nozzle Rebuild Kit
10220BULK	Bushing, for all Nozzles, BULK 10 (also sold 1 each- use Part # 10220)
10221BULK	Shim-Control Rod, for all Nozzles, BULK 25 (also sold 1 each- use Part # 10221)
11595BULK	Latch Plate, BULK 10 (also sold 1 each- use Part # 11595)
11602BULK	Control Rod, BULK 10 (also sold 1 each- use Part # 11602)
11603BULK	Handle & Latch Assembly Kit, BULK 5 (also sold 1 each- use Part # 11603)
11604	Handle Upgrade Kit
11298BULK	Outlet O-Ring, BULK 5 (also sold 1 each- use Part # 11298)
11733BULK	Anti-Drip Valve, 5PSI, BULK 5 (also sold 1 each- use Part # 11733)
