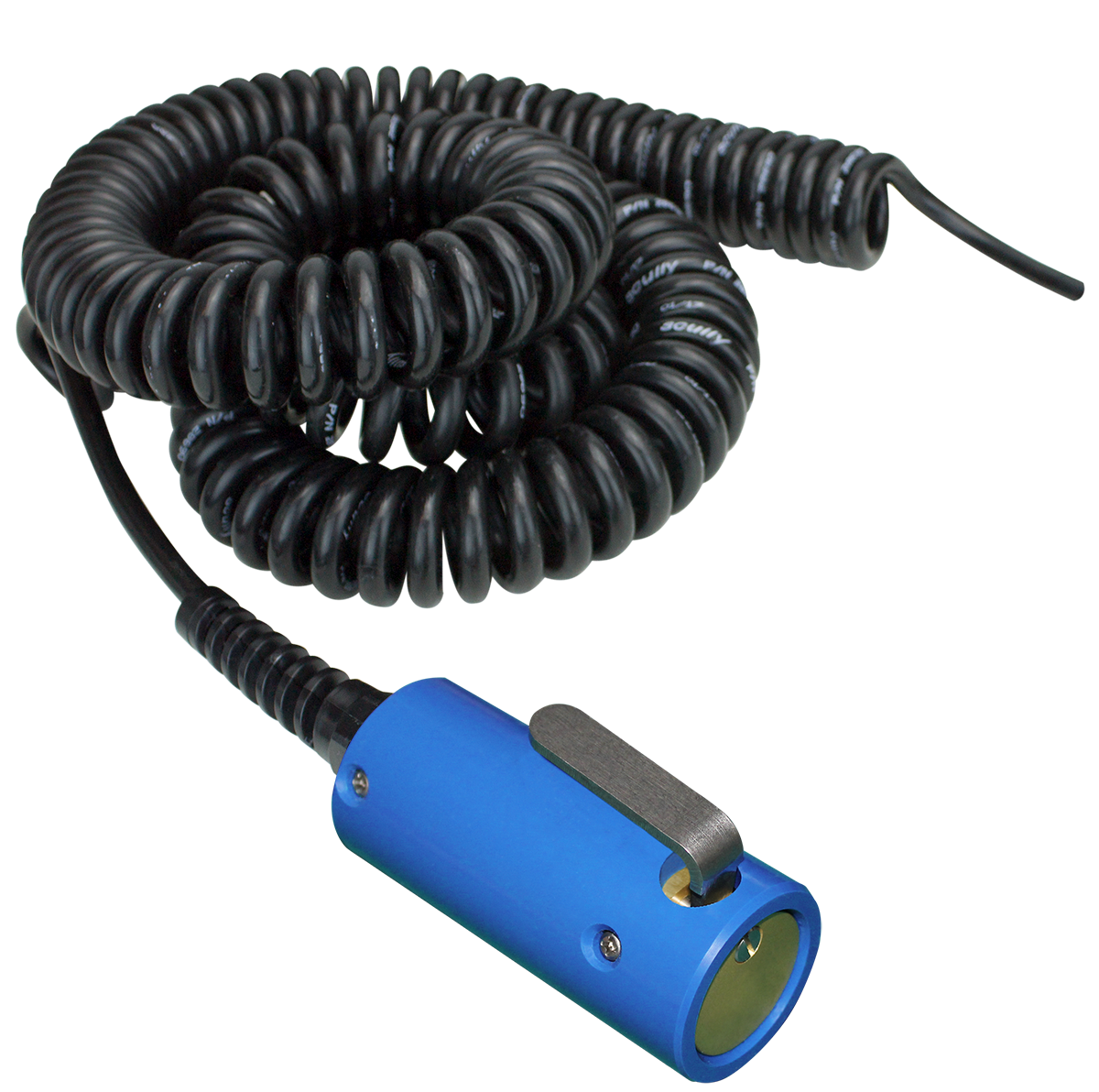

Deadman Handle & Cable
Safety Handheld Switch A normally open safety handheld switch that ...
Temper proof connectivity for static bond verification in truck trailer, aviation, and food and beverage liquid transfer applications.

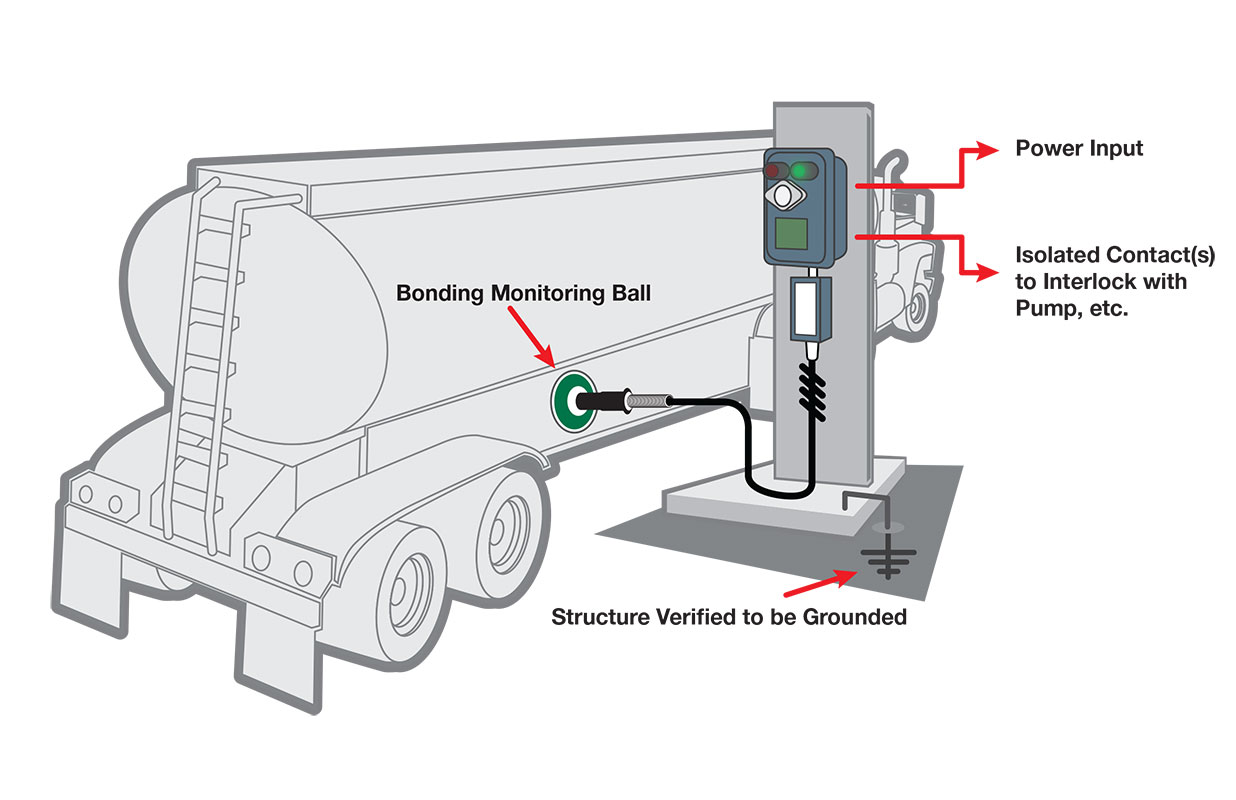

Can be used with a variety of loading operations including tank trucks, rail tank cars, aircraft refuelers, and tanks for an independent ground proving method without overfill prevention to ensure that transport vehicles are properly tied to ground before and during the loading operation
The ST-47 Static Ground Verification system continuously monitors the ground connection and if that connection is lost, the ST47 will non-permit
For static ground verification in conjunction with your Scully Overfill Prevention system, wire the ST-47 through your Overfill Prevention Control Monitor and plug and cable for one quick overfill protection and static grounding/earthing connection; see Plug & Cable Assemblies for Overfill with Grounding Combinations
The ordering information below is for FM and FMC approved units. For International ATEX approved models see data sheet (pages 2-3) posted above under Tech Specs.
|
Part #
|
Description
|
|---|---|
| 08249 | Rack Mounted Heavy Duty Junction Box with 20' Straight Cable and Ground Proving Plug for Connection to Vehicle Mounted Ground Proving Ball (Independent System) |
| 08567 | Rack Mounted Heavy Duty Junction Box with 32' Coiled Cable and Ground Proving Plug for Connection to Vehicle Mounted Ground Proving Ball (Independent System) |
The ordering information below is for FM and FMC approved units. For International ATEX approved models see data sheet (pages 2-3) posted above under Tech Specs.
|
Part #
|
Description
|
|---|---|

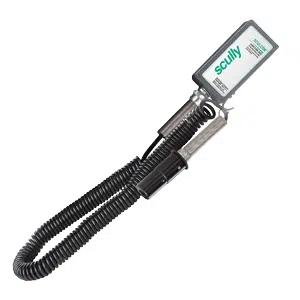

| 08566 | Plug and 32' Coiled Cable Assembly for SC-47 |
| 08219 | Plug and 20' Straight Cable Assembly for SC-47 |
| 08565 | Plug only for SC-47 |
| 32319 | SC-47 Sculcon Box Assy, General Purpose |
| 32445 | Strain Relief, 3⁄8″ for Grounding Cable |
