SCULLY Point Level Controls

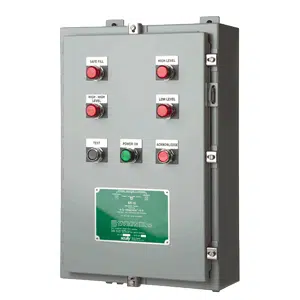

SCULLY Point Level Controls – ST-15-WX

The system incorporates Dynamic Self-Checking® circuitry which monitors the controller, wiring, connections, and sensors for faults 30 times per second for maximum safety
Sounds an audible alarm and/or controls pumps and valves for automatic shutdown when the sensors detect liquid or a fault in the system
As a high-level warning and emergency shut-down system, it operates independently from your gauging system to ensure that inventory inaccuracies do not compromise the safety of your operation
The sensors wired to a control unit provide high-level detection for a wide variety of petroleum and chemical products

The Scully WX System is certified by exida® as SIL3 Capable

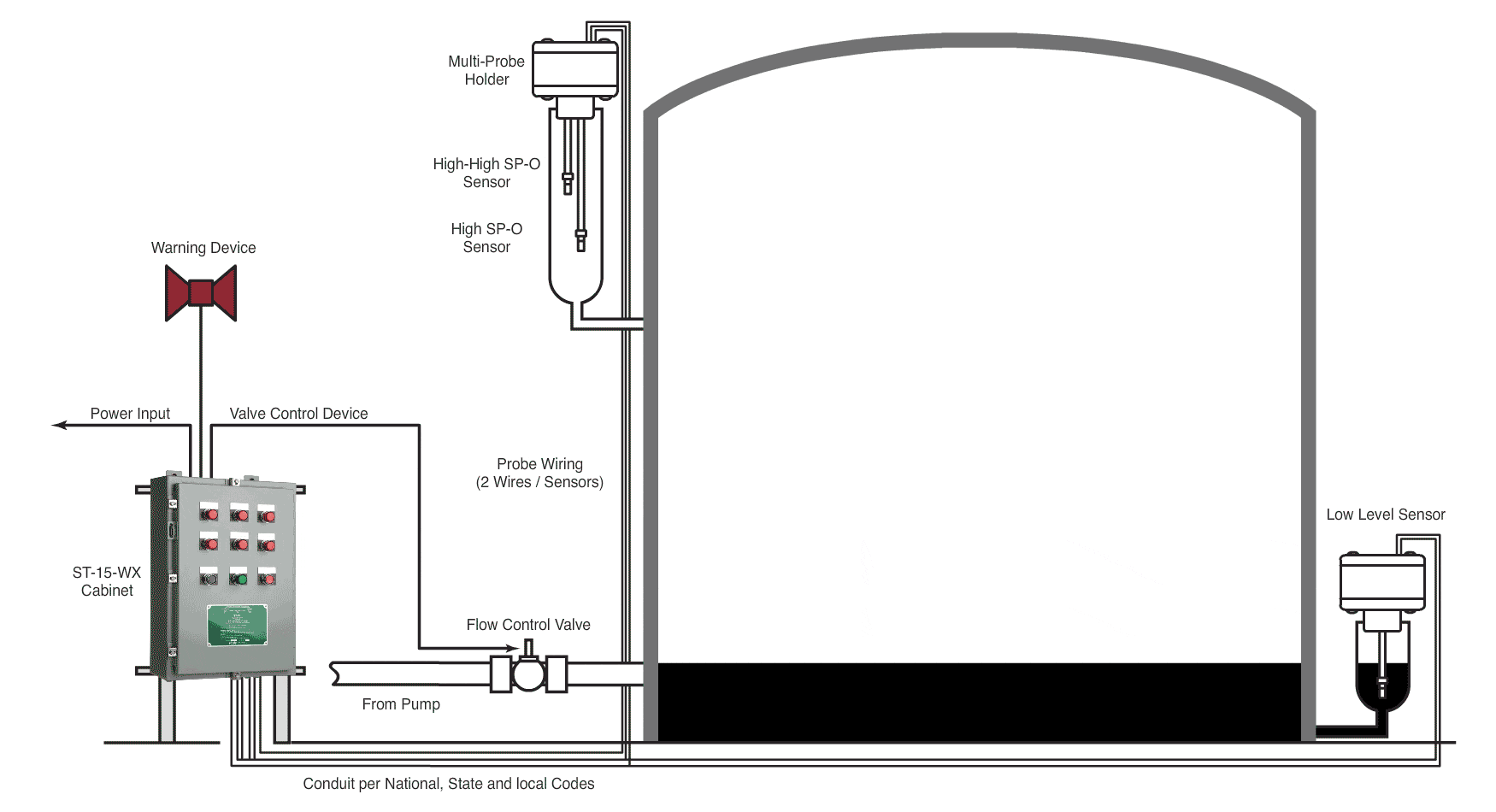

The WX System provides for the capability of alarms as well as controlling pumps and valves for immediate, automatic shutdown of product flow
Monitors from 2-12 sensing points depending on mode—well suited for multiple fixed storage tank applications where individual display and/or output control is required
Uses output sensors approved as intrinsically safe for use in Class I, Division 1, Group C, and D hazardous locations
Features NEMA 4 style watertight housings
Works in conjunction with either Scully field-proven thermistor or two-wire optic sensors

The ordering information below is for FM and FMC approved units. For International ATEX approved models see ST-15C-WX data sheet posted above.

Part #	Description	DIM X	DIM Y	Depth
07839 ST-15-WX2	Two-Channel Sensing Point Control Unit	11"	12.75"	5.25"
07851 ST-15-WX3	Three-Channel Sensing Point Control Unit	16″	24″	7.25″
07852 ST-15-WX4	Four-Channel Sensing Point Control Unit	16″	24″	7.25″
07853 ST-15-WX5	Five-Channel Sensing Point Control Unit	24″	30″	7.25″
07854 ST-15-WX6	Six-Channel Sensing Point Control Unit	24″	30″	7.25″
07855 ST-15-WX7	Seven-Channel Sensing Point Control Unit	24″	30″	7.25″
07856 ST-15-WX8	Eight-Channel Sensing Point Control Unit	24″	30″	7.25″
07857 ST-15-WX9	Nine-Channel Sensing Point Control Unit	30″	36″	7.25″
07858 ST-15-WX10	Ten-Channel Sensing Point Control Unit	30″	36″	7.25″
07859 ST-15-WX11	Eleven-Channel Sensing Point Control Unit	30″	36″	7.25″
07860 ST-15-WX12	Twelve-Channel Sensing Point Control Unit	30″	36″	7.25″
