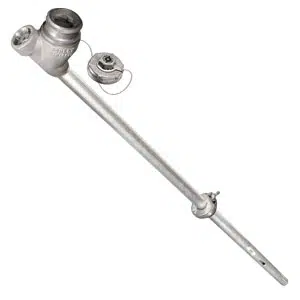

SCULLY Portable Fill Device – Ventafil®




Portable Whistle-Stop & Fill Device for USTs or Small ASTs

All in one portable whistle-stop and fill device for underground or small aboveground storage tanks

Features & Benefits

Portable Whistle-Stop and Fill Device for Underground or Small Above-Ground Tanks

  • All-in-one unit means the driver carries only one piece for filling and spill prevention
  • Built-in anti-foam vents won’t disturb sludge on the tank bottom while allowing for larger drops
  • Fills to within 4″ of the top of the tank

Tech Specs




Ordering Information

Portable Fill Device

Part #
Fill Pipe Length
Inlet Connector

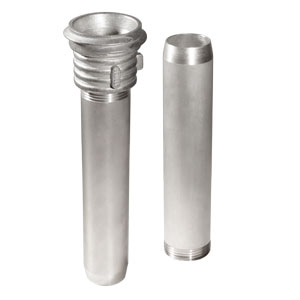

Fasfill Spout Size
Model #
04828 9″ Unifil® – –
04814 36″ Unifil® – VF 4814
04831 36″ 2″ Scul-Tite – –
04815 50″ Unifil® – VF 4815
04820 50″ “B” Fasfill® 1-1/4″ PIPE VF 4820

Note: All Ventafil® will accept 2″ NPT male pipe threaded connections

Replacement Parts

Part #
Description
04332 Unifil® 2” Adaptor
04316 Unifil® Cap
04342 Cord & Lock Ring
11042 Adaptor Gasket
10308 Whistle
10926 Whistle Gasket
10506 Whistle Retaining Clip
10925 Adjustable Plug Assembly
10910 Relief Disk
50120 Disk Holding Screw
10715 Bearing Pad
10949 Adjustable Plug Body
53100 Thumb Screw
11049 Stop Pad
10909 Nutplate
