SCULLY Tank Fill Audible Indicators

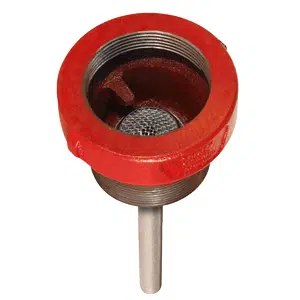

SCULLY Tank Fill Audible Indicators – Ventalarm®

Tank Opening	Vent Pipe	Model #	Part #
1-1/4″	1-1/4″	VS 201	00201
1-1/2″	1-1/2″	VS 202	00202
1-1/2″	1-1/4″	VS 240	00208
2″	1-1/4″	VS 521	00215
2″	1-1/2″	VS 530	00216
2″	2″	VS 270	00209
1-1/4″ (90° Elbow)	1-1/4″	VS 230	00227
2″	2″	*16-1/2″ – up to 2,000 gal.	00272
2″	2″	*21-3/4″ – greater than 2,000 gal.	00274
2″	2″	For 275 gal. vertical and flat tanks	00275

*For cement vaulted tanks

Installs without Removing the Existing Vent Pipe

Tank Opening	Vent Pipe	Model #	Part #
1"	1"	VS 224	00205
1-1/4"	1-1/4"	VS 220	00203
1-1/4"	1"	VS 221	00204
1-1/2"	1-1/2"	VS 229	00207
2″	2"	VS 275	00213
Gasket Kit	1"	VS 224/221	10269
Gasket Kit	1-1/4″	VS 220	10266
Gasket Kit	2″	VS 275	10328

Note: Compression Ventalarm® Tank Fill Signals are not for use in underground tanks

Fill Signal for Vents Distant from Fill Pipe

Uses a special intrusion stem and weighted vent cap; see catalog for illustration

Part #	Tank Opening	Vent Pipe	Model #
00219	1-1/4″	1-1/4″	VS 921
00221	1-1/4″	2″	VS 924
00223	*Special	1-1/4″	VS 926

*Fits into hole drilled into tank when no opening is available

Large tank remote signals require a 3/4″ line for heavy oils; not supplied by Scully

Remote signals require 3/8″ copper tubing to connect to whistle; not supplied by Scully
