SCULLY Thermistor Sensor For Storage Tanks-

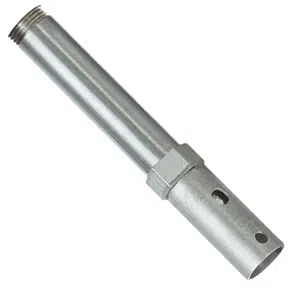

SCULLY Thermistor Sensor For Storage Tanks

Proven Point Level Detection & Overfill Prevention

Maximum safety with Dynacheck® automatic and continuous Self-Checking® circuitry when used with Scully monitoring systems
Field-proven thermistor level-sensing technology with NPT mounting threads
Scully SP-M models are designed for use with Scully ST-15 Control Monitors

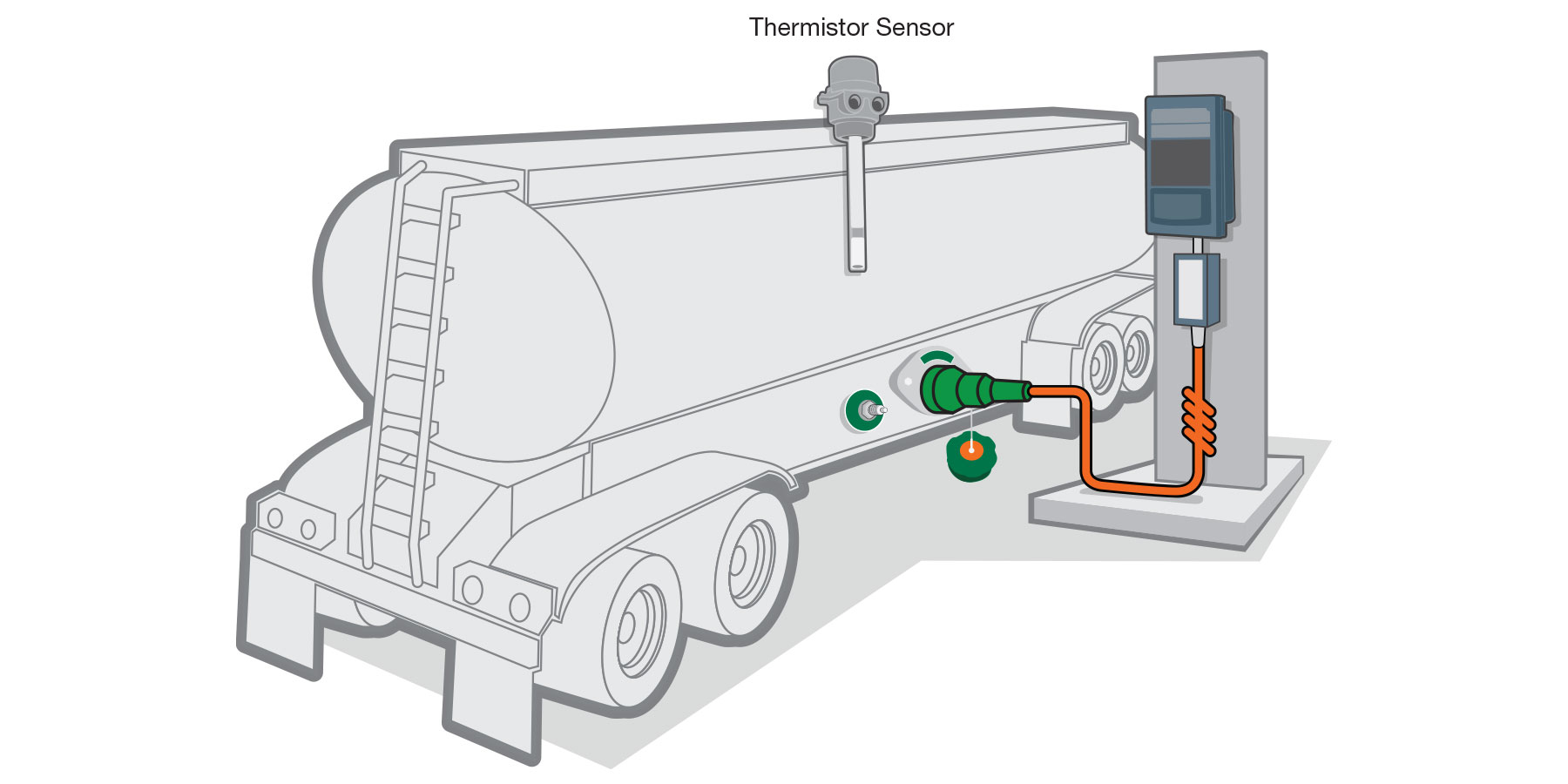

Typical uses include storage tanks, double-containment piping trenches, and double-wall storage tank interstitial space monitoring
Years of dependable, virtually maintenance-free operation
Sensors can be easily extended to desired length at installation site using a 3/8” x 3/8” coupler and the required length of 3/8” NPT pipe

Tech Specs

Features

Thermistor Sensor

Easy to install, proven point level detection and overfill prevention

Reliable components with no moving parts
Functions within a wide range of temperatures and in a variety of liquid products
Sensors can be extended using a 3/8” x 3/8” coupler and the required length 3/8” NPT pipe
Meets required North American Intrinsic Safety approvals for USA and Canada
SIL 3 capable

Ordering Information

Thermistor Sensors

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Thermistor Sensor for Storage Tanks data sheet posted above.

Part #	Description	Temperature
07996	SP-M Low-Temperature Thermistor Sensor	Low
07545	SP-M High-Temperature Thermistor Sensor	High
07611	SP-M Standard Temperature Thermistor Sensor	Standard
