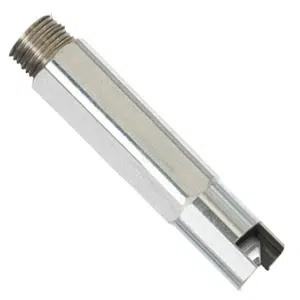

SCULLY Two-Wire Optic Sensor for Storage Tanks-

SCULLY Two-Wire Optic Sensor for Storage Tanks

Easy-to-Install, Proven Point Level Detection & Overfill Prevention

Maximum safety with Dynacheck® automatic and continuous Self-Checking® circuitry when used with Scully monitoring systems
Field-proven, optic level-sensing technology with NPT mounting threads
SP-IO models are designed for use with Scully ST-15 Control Monitors
Typical uses include storage tanks, double-containment piping trenches, and double-wall storage tank interstitial space monitoring
Years of dependable, virtually maintenance-free operation
Sensors can be easily extended to desired length at installation site using a 3/8” x 3/8” coupler and the required length of 3/8” NPT pipe

Tech Specs

Features

Two-Wire Optic Sensor For Storage Tanks

Reliable components with no moving parts
Functions within a wide range of temperatures and in a variety of liquid products
Sensors can be extended using a 38” x 3/8” coupler and the required length 3/8” NPT pipe
Intrinsic Safety approvals for North America, ATEX, IECEx, UKEX, PESO, and EAC
IEC 61508 Functional Safety SIL 3 Capable

Please refer to the datasheet for low and high temperature sensor models.

Ordering Information

Two-Wire Optic Sensors

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Two-Wire Optic Sensor for Storage Tanks data sheet posted above.
