SCULLY Two-Wire Optic Sensor

SCULLY Two-Wire Optic Sensor – SCUL-SENSE™

Liquid Level Sensor for Tank Trailer Overfill Prevention

System-wide Dynacheck® pulsing signal ensures safe and reliable loading operation
Purpose-built for liquid petroleum product overfill prevention and point level detection
Designed to be used with the Scully Intellitrol® and ST-15 series loading rack control monitors
Can also be used with the Scully IntelliCheck®3 and IntelliCheck2® Control Unit

Tech Specs

Features

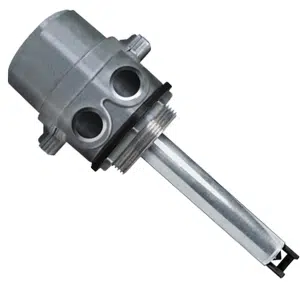

Two-Wire Optic Sensor - SCUL-SENSE™

Requires no warm-up time, so no waiting for permit light

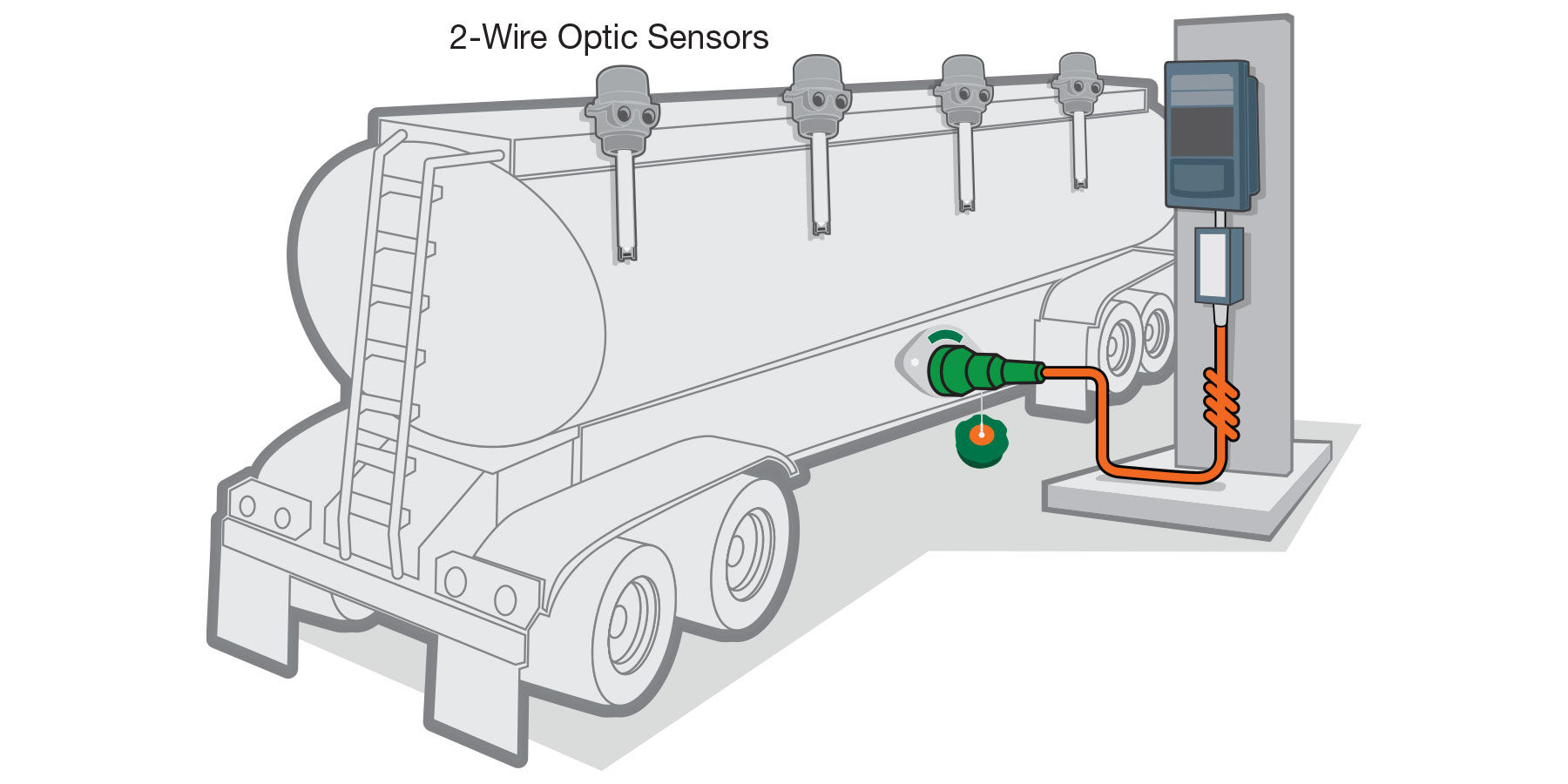

Overfill prevention applications include road tankers, rail cars, and storage tanks
Eliminates operator involvement to end the loading operation—controlling pumps and valves are shutdown if rising fuel contacts the sensor

Ordering Information

Two-Wire Optic Sensors

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Two-Wire Optic Sensor data sheet posted above.

Part #	Model	Description	Shaft Length
09408L1	SP-TO/MHC(MC)	Two-Wire Optic Sensor, 2″ NPT holder, 2 1/8″ Medium Cap	7″ (175mm)
09413L1	SP-TO/MHC (MC)		12″ (300mm)
09416L1	SP-TO/MHC (MC)		15″ (375mm)
09407L1	SP-TO/MHCF(MC)	Two-Wire Optic Sensor, flanged holder, 2 1/8″ medium cap	7″ (175mm)
09412L1	SP-TO/MHCF (MC)		12″ (300mm)
09415L1	SP-TO/MHCF (MC)		15″ (375mm)
08542	SD-5CE	5-Element Electronic Dummy

Employed on tank trucks with less than 6 compartments (8 in Canada) when not using IntelliCheck® series monitors.

Replacement Parts

The ordering information below is for FM and FMC approved units. For International ATEX approved models see Two-Wire Optic Sensor data sheet posted above.

Part #	Model	Description	Shaft Length
09409L1	SP-TO	Two-Wire Optic Sensor, (without holder)	7″ (175mm)
09414L1			12″ (300mm)
09417L1			15″ (375mm)
09065	SP-MHC (MC)	2″ NPT Threaded Holder Only
08265	SP-MHCF (MC)	Flanged Holder Only
