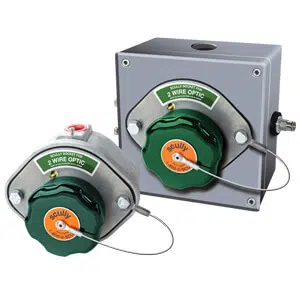

SCULLY Two-Wire Optic Socket

SCULLY Two-Wire Optic Socket – UK

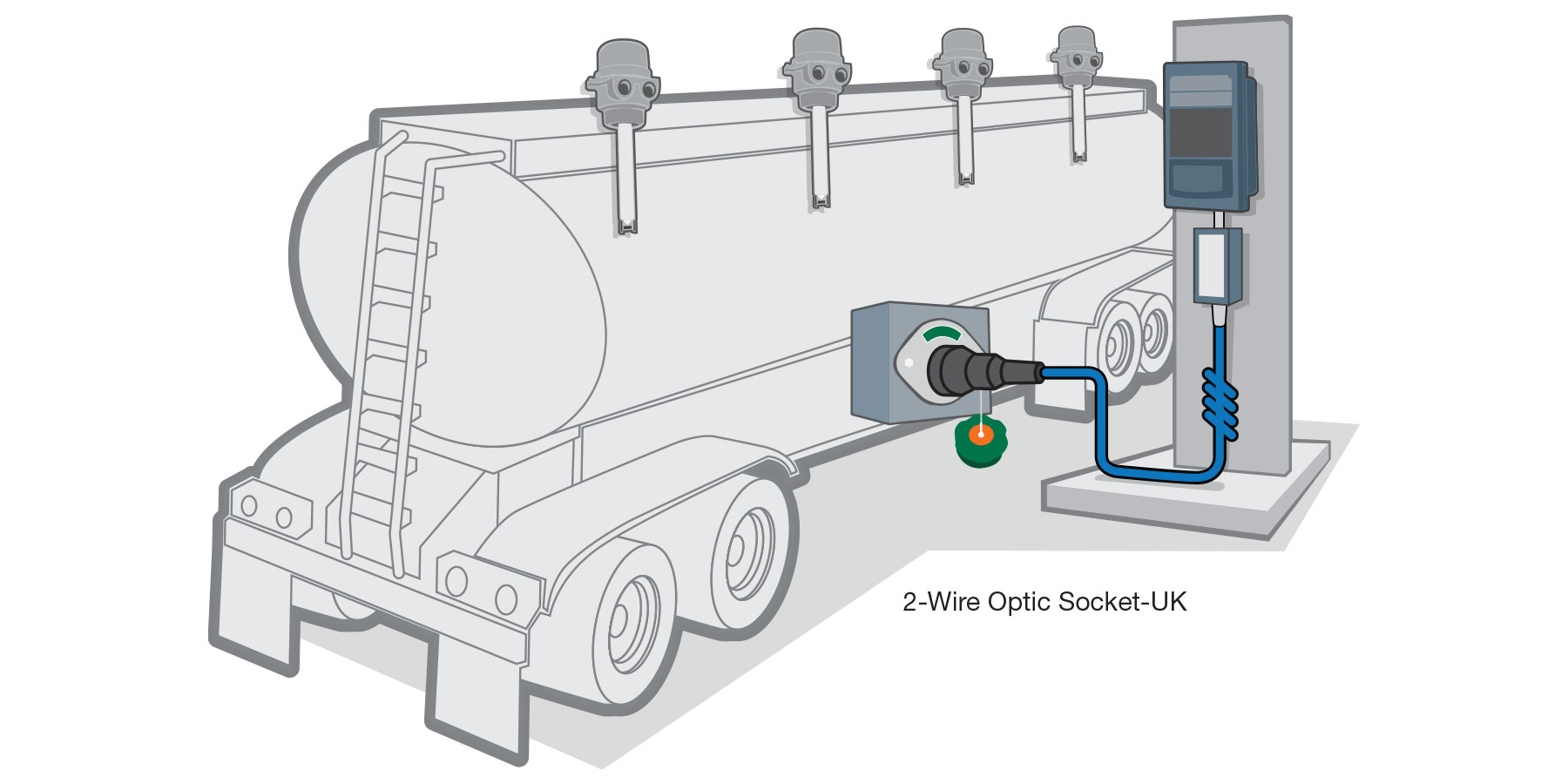

Connects up to 8 tanker-mounted, Two-Wire Optic Sensors to a Scully Overfill Prevention Monitor, such as an Intellitrol overfill and ground controller or a ST15 single point overfill prevention controller
Can also have an interlock switch installed, which allows the brakes to be applied when the Scully plug is connected, and a pressure switch can be fitted to make sure the connection of the vapor hose is completed before a permissive signal is given by the controller

Socket can come complete with Interlock switch and pressure, or can be built in any combination; can request to have any combination of interlock switch or pressure switch installed
Can be used on single compartment and up to 8-compartment vehicles,with dummy sensors provided in the socket
Rugged construction to endure the various environments it can be put through
Caters for top and bottom loading
Easy installation onto the tanker chassis
Lightweight green polyvinyl cap
Pins for tanker earthing are incorporated

Part #	Description
7508644	Top Socket with 2 dummies only
7508646	Top Socket with nothing installed
7508802/I	Top Socket with dummy and Interlock
7508645	Bottom Socket with 2 dummies only
7508646/P	Bottom Socket with dummy and pressure switch
7508802/I/T/2Comp	Bottom Socket with 2 dummies and Interlock
7508802/IP	Bottom Socket with 1 dummy, Interlock and pressure switch
7508802/IP/1Comp	Bottom Socket with 2 dummies, Interlock and pressure switch
7508802/IP/-DUMMY	Bottom Socket with Interlock and pressure switch
7508802/I/B/1Comp	Bottom Socket with 2 dummies and Interlock only
7508802/IP/2Comp	Bottom Socket with 2 dummies, Interlock and pressure switch

Part #	Description
7520628	Housing Gasket
0100774	Machined Enclosure Polyester
7531559	Top Socket Enclosure
7531276	Socket Faceplate with Interlock hole
7531276UK	Socket Faceplate without Interlock hole
7508542	Electronic Dummy, SD-SCE 5 element
0100543	Pressure Switch Assembly
0100181	Interlock Switch
0100179	Bulkhead Connector 4mm
508574	Polyvinyl Dust Cap and Cable Assembly, gree
