Scully Unifil® Delivery System Accessories

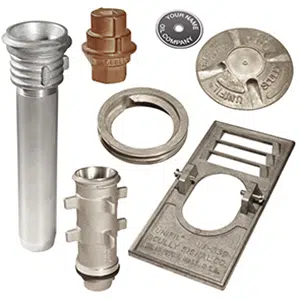

Unifil® Delivery System Accessories

Including spouts, flush insert adapters, hex driver, o-ring replacement, and more.

Features & Benefits

Spouts quickly attach to nozzle connector and allow for loose connections
Flush insert adaptors, cap, cover, and wrench are used for sidewalk or other flush fills and to hide the fill pipe
Hex driver is a tool used to install all standard adaptors and flush insert adaptors
O-Ring replacement package for nozzle connector
Only Scully offers a cap that allows for a special Oil Company Name ID Disc
Look for the Scully name for made-in-the-U.S.A. quality and reliability

Tech Specs

Unifil® US English

Features

Delivery System Accessories

Available in male and female threads
45° adaptors are ideally suited where the fill pipe is close to the wall
Straight adaptors suitable when replacing a pipe plug for 1 ¼”, 1 ½” and 2” fill pipes
Cap fits the top of all Scully straight and 45° adaptors and features a heavy-weight design
Nozzle connector is installed on the nozzle outlet and incorporates a special hex opening to match the hex on Scully’s all-weather caps

Ordering Information

Insert Wrench

For installations where sunken fill box does not permit use of flush insert connector for tightening or loosening the flush insert cap

Part #	Model #	Size
04360	UF-327	–

Hex Driver

One side is used to install all standard adaptors; the other side is used for installation of flush insert adaptors

Part #	Model #	Size
04355	UF-309	–

Spout

This accessory quickly attaches to the Scully nozzle connector for troublesome fills or where a loose connection is desired

Part #	Model #	Size
04334	UF-54	Unifil®
06302	NS 204	1-1/4″ x 8″
06303	NS 276	1-1/2″ x 6.5″

Flush Box Cover

This vertical decorative cover mounts on the house siding to hide the fill pipe; louvers are built to provide venting and shelter from the rain

Part #	Model #	Size
04362	UF-339	1-1/2″

Flush Insert Adaptor

Used with sidewalk or other flush fills and designed to insert into existing fill box

Can be adapted to worn pipe threads by using one of three sizes-standard (S-coded blue), large (L-coded green), and extra-large (coded red)

Part #	Model #	Size
04303	UF-10S	2″ S-NY
04301	UF-10L	2″ L-NY
04304	UF-XL	2″ XL-NY

Flush Insert Connector and Wrench

Used only when making a tight connection to the Unifil® flush insert adaptor, then the nozzle connector is rapidly attached to the nozzle

The projections on the side act as a wrench to tighten or loosen the flush insert cap

Part #	Model #	Size
04358	UF-306	–

Flush Insert Cap

Designed for use with the flush insert adaptor and acts as an effective watershed; ideal for use where flush characteristics are important

Part #	Model #	Size
04317	UF-22	2″ NY

Cap Identification Discs

API color coded symbol styles for #2 fuel oil used for fill pipe identification; company name, and contact info

Installs easily on Scully all weather and flush fill caps

This is a special-order item with a minimum order quantity and printing set-up charges; contact Scully at 1-800-272-8559

Part #	Model #	Size
04343		300 Pcs.
10720		500 Pcs.
10719		1000 Pcs.
