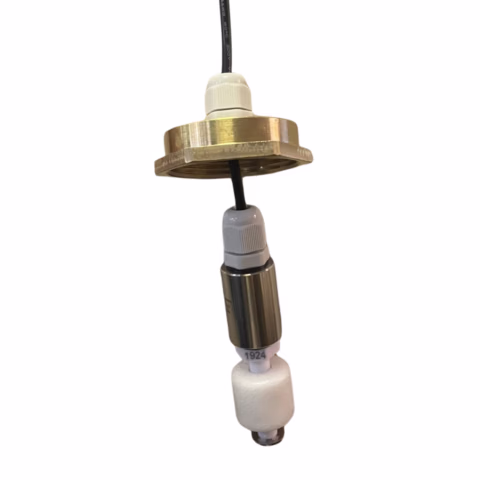

The Single Fuel Tank Alarm Probe is designed to be purchased alongside the mains or battery operated fuel tank alarms, when either a high level, low level or bund alert is required. If both high and low level alerts are requirements of your fuel storage tank level alarm, then a double probe should be purchased. If you require all three alerts, then you would need to purchase both a double and a single fuel tank level probe. These alarm probes can be used on other industrial control systems that use a simple reed switch control input.

The standard code for the single fuel tank level switch is designed for use on steel tanks. Please see the accessories table for the kit required to adapt it for plastic tanks.

• For use with the CTS mains or battery tank level alarms
• High, low or bund alerts
• 5m or 10m fuel tank probe cable
• 1 1/2" F BSP brass cap
• 1 x Grommet
• PVC, PP, S/S, FKM, Nylon wetted parts
• Temp Range: -20°c - +80°c
• For diesel, fuels, light oils and water

• Float is reversible





  Product Models


• Code	Model	Description
  SWS1035	Single Fuel Tank Alarm Probe - For High Level, Low Level or Bund	Alerts - High, low or bund Cable - 5m PVC Temperature - -20°c - +80°c Connection - 1 1/2" F BSP brass cap Stainless Steel weight 1 x Grommet For diesel, fuels, light oils and water
  SWS1035/9	10m Single Fuel Tank Alarm Probe - For High Level, Low Level or Bund	Alerts - High, low or bund Cable - 10m PVC Temperature - -20°c - +80°c Connection - 1 1/2" F BSP brass cap 1 x Grommet For diesel, fuels, light oils and water Brass weight




  Accessories


• Code	Accessory
  SWS1036	Plastic Tank Kit - For Single Tank Alarm Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
  SWS1111	Extra Alarm Cable Per Metre
