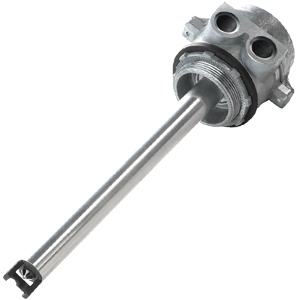

Two-Wire Optic Sensor – SCUL-SENSE™
Liquid Level Sensor for Tank Trailer Overfill Prevention System-wide ...

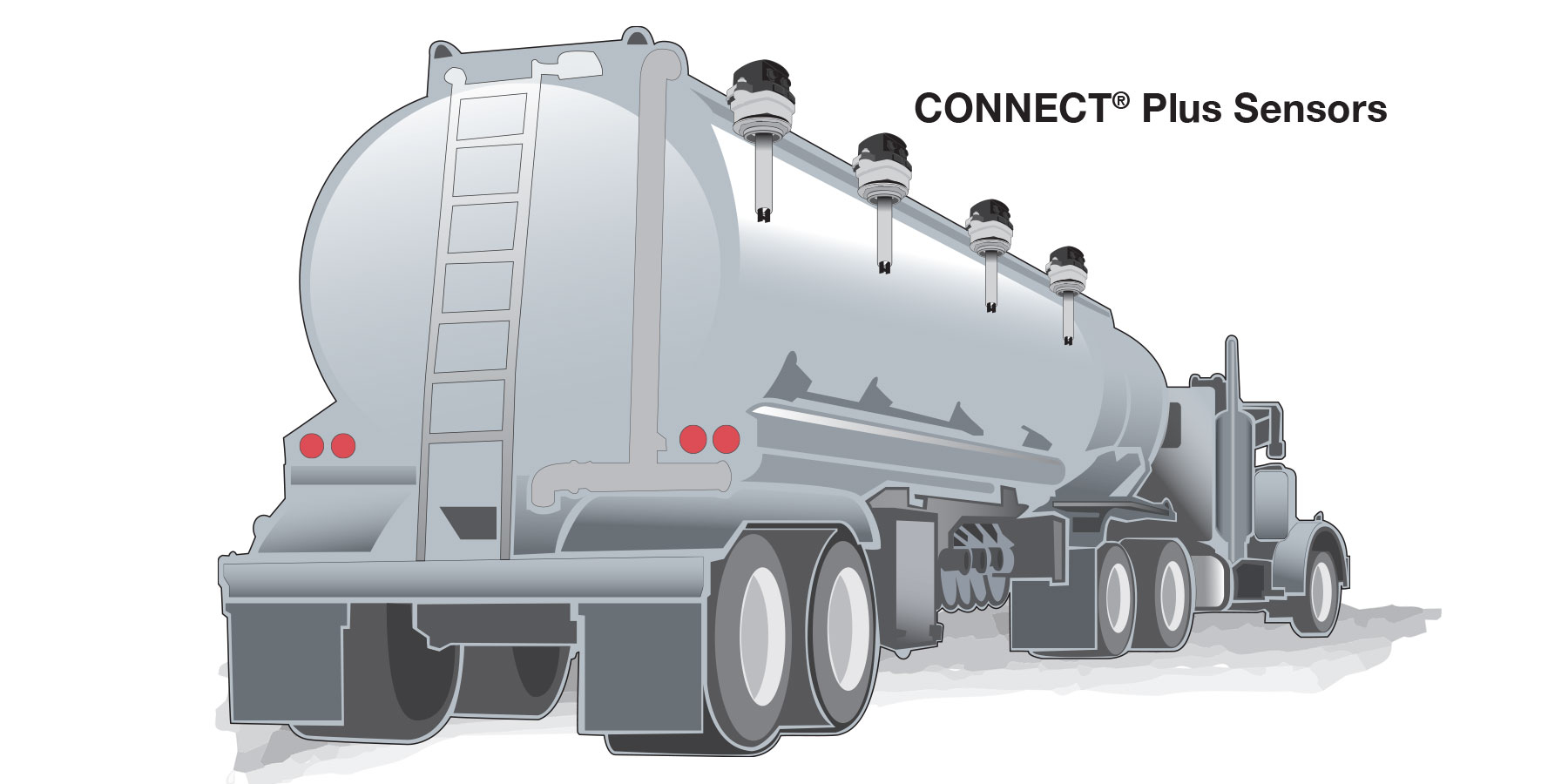

The Scully Connect Plus Sensor is an advanced, toolless overfill prevention sensor that offers quick, easy, error-free installation. It can save hours of installation time, prevent system miswiring, and allow trouble-free connections.
This patent pending sensor and cabling system is designed for reliable operation and maximum safety and features. The sensor features a connector for simple sensor installation and replacement, while new levers provide toolless sensor access in tight spaces. The exterior cable connectors on the cap feature marine-grade watertight settings and both the sensor and cap were extensively tested to withstand extreme environmental conditions.
Time-saving installation eliminates wiring errors since no wire crimping is required
No tools required when on top of a truck installing, removing, or replacing the sensor
IP69K Ingress Protection Rating—no ingress of dust and protection against close range, high pressure water spray down
Supports up to eight 2-wire compartment sensors enabling use in a wide portfolio of trailers
External cap levers dual axis assembly now enable vertical rotation for easy installation and removal in tight spaces
Corrosion-resistant aluminum alloy levers stand up to harsh environments on the top of tank trailers
|
Part #
|
Description
|
|---|---|
| 092000353 | SCP 2-Wire, 7" Sensor, Std Base (Complete Sensor Assembly) |
| 092000354 | SCP 2-Wire, 12" Sensor, Std Base (Complete Sensor Assembly) |
| 092000359 | SCP 5-Wire, 7" Sensor, Std Base (Complete Sensor Assembly) |
| 092000360 | SCP 5-Wire, 12" Sensor, Std Base (Complete Sesnor Assembly) |
| 092000350 | SCP termination Connector |
|
Part #
|
Description
|
|---|---|
| 235001606 | SCP Double Ended Black Cable- 6' (1829mm) |
| 235001608 | SCP Double Ended Black Cable- 8' (2438mm) |
| 235001610 | SCP Double Ended Black Cable- 10' (3048mm) |
| 235001612 | SCP Double Ended Black Cable- 12' (13658mm) |
| 235001614 | SCP Double Ended Black Cable- 14' (4267mm) |
| 235001616 | SCP Double Ended Black Cable- 16' (4877mm) |
| 235001618 | SCP Double Ended Black Cable- 18' (5486mm) |
| 235001620 | SCP Double Ended Black Cable- 20' (6096mm) |
| 235001530 | SCP Single Ended Black Cable- 30' (9144mm) |
| 235001540 | SCP Single Ended Black Cable- 40' (12192mm) |
| 235001550 | SCP Single Ended Black Cable- 50' (15240mm) |
| 235001560 | SCP Single Ended Black Cable- 60' (18288mm) |
|
Part #
|
Description
|
|---|---|
| 092000351 | SCP Replacement Cap with Lever 2-Wire |
| 092000352 | SCP Replacement Cap with Lever 5-Wire |
| 092000010 | Replacement Base w/ NPT thread with sensor lever |
| 58000 | On/Off Switch (IC3 kit) |
| 092000006 | 2-Wire, 7” Sensor (Single Sensor) |
| 092000007 | 2-Wire, 12“ Sensor (Single Sensor) |
| 092000008 | 5-Wire, 7” Sensor (Single Sensor) |
| 092000009 | 5-Wire, 12” Sensor (Single Sensor) |
|
Part #
|
Description
|
|---|---|
| 092000372 | SCP 2-Wire, 7" Sensor, Std Base BSP (Complete Sensor Assembly) |
| 092000356 | SCP 2-Wire, 12" Sensor, Std Base BSP (Complete Sensor Assembly) |
| 092000373 | SCP 5-Wire, 7" Sensor, Std Base BSP (Complete Sensor Assembly) |
| 092000374 | SCP 5-Wire, 12" Sensor, Std Base BSP (Complete Sensor Assembly) |
| 092000362 | SCP 5-Wire, 15" E Sensor, BSP Base (Complete Sensor Assembly) |
| 092000350 | SCP termination Connector |
|
Part #
|
Description
|
|---|---|
| 235001806 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,6' (1829mm) |
| 235001808 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,8' (2438mm) |
| 235001810 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,10' (3048mm) |
| 235001812 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,12' (3658mm) |
| 235001814 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,14' (4267mm) |
| 235001816 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,16' (4877mm) |
| 235001818 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,18' (5486mm) |
| 235001820 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,20' (6096mm) |
| 235001830 | P CA,DOUBLE-ENDED,BLU,SCULLY CONNECT,30' (9144mm) |
| 235001730 | P CA,SE-RA,LT BLU,SCULLY CONNECT,30' (9144mm) |
| 235001740 | P CA,SE-RA,LT BLU,SCULLY CONNECT,40' (12192mm) |
| 235001750 | P CA,SE,BLU,SCULLY CONNECT,50' (15240mm) |
| 235001760 | P CA,SE,BLU,SCULLY CONNECT,60' (18288mm) |
|
Part #
|
Description
|
|---|---|
| 092000351 | SCP Replacement Cap with Lever 2-Wire |
| 092000352 | SCP Replacement Cap with Lever 5-Wire |
| 092000265 | Replacement Base w/ BSP threads with sensor lever |
| 58000 | On/Off Switch (IC3 kit) |
| 092000006 | 2-Wire, 7” Sensor (Single Sensor) |
| 092000007 | 2-Wire, 12“ Sensor (Single Sensor) |
| 092000008 | 5-Wire, 7” Sensor (Single Sensor) |
| 092000009 | 5-Wire, 12” Sensor (Single Sensor) |
