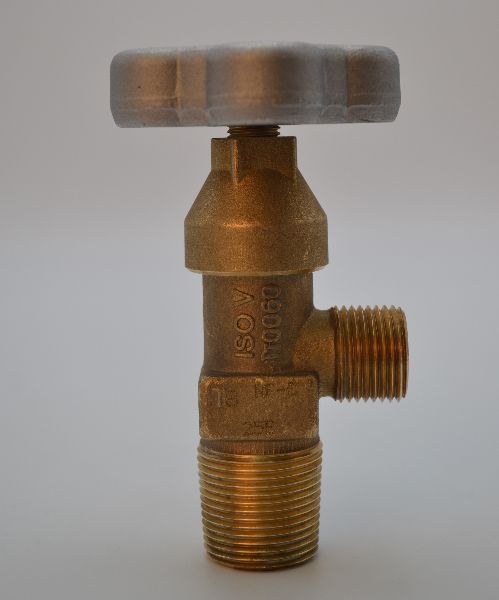

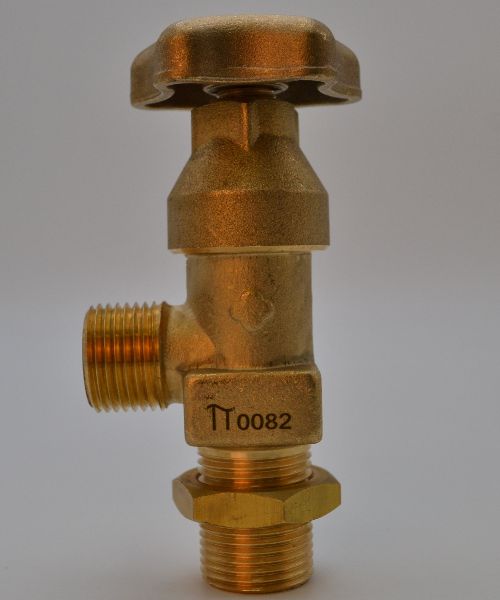

TYPE 8 valves are high-pressure O-ring valves suitable for all types of compressed, dissolved or mixed gases, including oxygen. They can be used for operating pressures up to 300 bar, with ou without safety, in brass or nickel-plated, for all inlet and outlet types to suit the application and the required national standard.
8型阀门是高压O型圈阀，适用于所有类型的压缩、溶解或混合气体，包括氧气。它们可用于高达300巴的工作压力，无需安全保护，黄铜或镀镍，适用于所有入口和出口类型，以适应应用和所需的国家标准。
| SPECIFICATIONS: | |
| Material: | Brass |
| Operating pressure: | Up to 300 bar |
| Accreditations: | EN ISO 10297:2014+A1:2017 |
| Residual pressure | No |
| Operating temperature | -20°C to +65°C |
| Storage and transport temperature: | -40 °C to +65°C |
| Flow diameter: | 4 mm |
| Breaking disc: | With or without rupture disk |
| Wheel: | Brass, 48mm |
| 48 mm white brass | |
| 48 mm nickel-plated brass | |
| 64 mm aluminum | |
| Finishes: | Brass or nickel-plated |
| Options: | Engraving of your logo or other |
